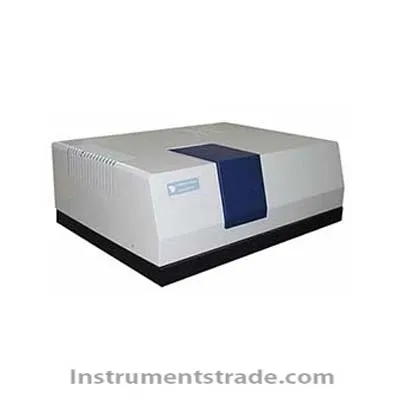

TP720 UV - visible - near infrared spectrophotometer

Product ID：FGjhw003

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberTP720

Brand NameTJTUOPU

Payment TermsTT，PAYPAL，Alibaba.com Pay

Main purpose and scope
TP720 UV- NIR Spectrophotometer UV-visible simultaneously covering the near-infrared waveband . The instrument uses a computer control and measurement , simple, functional, and can be widely used in various fields of chemical , pharmaceutical , environmental protection, education , materials science , public security, national defense , scientific research , production, teaching an indispensable analytical instruments .
Main technical characteristics:
The product uses a double grating , dual receiver design , the choice of a photomultiplier tube receiver and lead sulfide imported components , to ensure that the instrument cover band UV-visible , near infrared wavelength range : 190-2800nm.
Main Specifications

Wavelength range	190~2600 nm
Measurement mode	Transmittance , absorbance , reflectance , energy
Wavelength Accuracy	±0.5nm(UV/VIS);±4nm(NIR)	Wavelength repeatability	±0.3nm(UV/VIS);±2nm(NIR)
Luminosity range	0.300~2.5A,
Photometric accuracy	±0.3%T(0-100.0%T)	Photometric repeatability	0.2%T
Baseline flatness	±0.008A (200-2500nm,After a half-hour warm-up)
Spectral Bandwidth	UV-visible:0.2nm,0.5nm ,1.0nm ,1.5nm,2.0nm,4.0nm Near Infrared0.4-16.0nm(Automatic, Manual)
Stray light	≤0.1%T(220nm)
Dimensions	830×600×260mm

Introduction:
UV-Vis-NIR spectrophotometer TP720 can cover the entire UV-Vis-NIR spectral range and realize continuous scanning in the 190-2800nm band. The UV-Vis-NIR spectrophotometer TP720 has a wide range of applications. It can measure the characteristic absorption of solid / liquid samples in the UV-Vis-NIR range; it can study the absorption / transmission or reflection spectrum of glass coating samples; it can study the powder samples The absorption spectrum in the entire ultraviolet, visible, and near-infrared region; it can also measure the diffuse reflection spectrum of special coatings, which is suitable for semiconductors, optical components, building materials, coatings, new materials and other industries. It is a powerful spectral analysis instrument.
