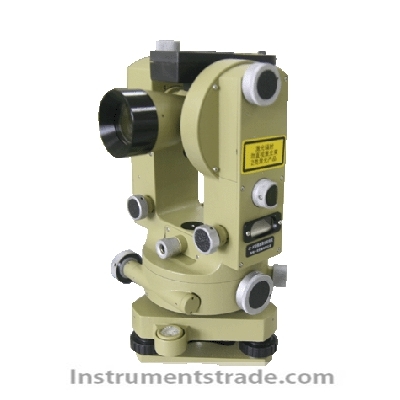

J2-JC Laser Optical Theodolite
Product Introduction
J2-JC Laser Optical Theodolite is a high-precision surveying instrument that integrates optical angle measurement technology with laser pointing technology. By utilizing the strong directivity and concentrated energy characteristics of laser beams, this instrument provides accurate, efficient, and convenient solutions for alignment, positioning, angle measurement, and deformation monitoring applications.
The J2-JC laser theodolite is widely used in large-scale shipbuilding, heavy machine tool calibration, aircraft frame installation, port and bridge engineering, dam displacement monitoring, pipeline construction, tunnel engineering, high-rise buildings, tower structures, vertical alignment measurement, and leveling applications.
Featuring a short-distance telescope design, digital angle reading, coaxial laser pointing, and automatic vertical circle indexing, the J2-JC provides reliable performance for various special surveying tasks requiring high accuracy and operational efficiency.

Key Features
• High-Precision Laser Alignment
Equipped with a laser diode system, the instrument provides a highly directional laser beam for precise positioning and alignment measurements.
• Coaxial Laser Pointing System
The laser beam is coaxial with the telescope optical axis, ensuring accurate target positioning and reducing measurement errors.
• Clear and Bright Telescope View
The telescope delivers a bright and clear field of view, enabling convenient observation under different working conditions.
• Digital Angle Reading
The digital display provides fast, reliable, and accurate angle readings, improving measurement efficiency.
• Automatic Vertical Circle Indexing
The vertical circle index automatically returns to zero, making vertical angle measurements faster and more precise.
• Compact Design for Special Surveying Applications
The short-distance telescope design makes the instrument suitable for specialized measurement tasks in confined or complex environments.

Working Principle
The J2-JC Laser Optical Theodolite combines traditional optical theodolite technology with laser projection technology.
During operation, the telescope is used for optical target observation, while the built-in laser diode generates a visible laser beam along the telescope axis. The operator can accurately determine alignment positions and measure horizontal and vertical angles through the digital angle reading system.
The laser beam provides precise reference points over long distances, while the high-resolution angle measurement system ensures accurate surveying results for engineering construction and deformation monitoring.

Technical Parameters

Parameter	Specification
Instrument Model	J2-JC
Telescope Type	Inverted Image
Laser Type	Laser Diode
Laser Wavelength	635 nm
Effective Range (Daylight)	200 m
Minimum Focusing Distance	0.7 m
Laser Spot Size	5 mm / 100 m
Crosshair Width with Wave Plate	1 mm / 30 m
Laser Beam Focusing Spot Center Accuracy	≤5″
Power Supply	DC 3V (Two AA Batteries)
Operating Temperature	-10℃ to +45℃

Applications
The J2-JC Laser Optical Theodolite is suitable for precision measurement and alignment applications in:
• Large ship manufacturing and assembly
• Heavy machine tool bed calibration
• Mechanical component deformation measurement
• Aircraft frame installation and positioning
• Port and bridge construction projects
• Dam body displacement monitoring
• Large pipeline installation and alignment
• Tunnel and underground engineering
• High-rise building construction
• Large tower structure installation
• Vertical plumb line measurement
• Precision leveling and engineering surveying

Advantages Compared with Traditional Optical Theodolites

Feature	J2-JC Laser Optical Theodolite	Traditional Optical Theodolite
Alignment Method	Laser-assisted alignment	Manual optical alignment
Positioning Accuracy	Higher precision with visible laser reference	Depends heavily on operator experience
Operation Efficiency	Faster target positioning and measurement	Longer setup and adjustment time
Automation Capability	Supports laser-based positioning	Limited automation
Application Range	Suitable for large-scale engineering alignment	Mainly conventional surveying

Why Choose J2-JC Laser Optical Theodolite?
• Combines optical measurement accuracy with laser positioning advantages
• Provides reliable performance for large engineering projects
• Improves surveying efficiency and reduces manual adjustment errors
• Suitable for complex environments requiring accurate alignment
• Designed for industrial construction, installation, and deformation monitoring applications

Frequently Asked Questions (FAQ)
1. What is a J2-JC Laser Optical Theodolite used for?
The J2-JC Laser Optical Theodolite is mainly used for precision angle measurement, alignment, positioning, and deformation monitoring in engineering projects such as shipbuilding, bridges, tunnels, pipelines, dams, and high-rise structures.
2. What is the maximum laser measurement range?
The effective laser range can reach approximately 200 meters under daylight conditions.
3. What advantages does laser pointing provide?
Laser pointing provides a visible and precise reference line, improving alignment accuracy and reducing measurement errors during installation and construction.
4. Can the J2-JC be used for vertical alignment measurement?
Yes. The instrument supports vertical direction measurement and is suitable for plumb line measurement of towers, buildings, and other large structures.
5. What industries commonly use laser theodolites?
Laser theodolites are widely used in construction engineering, industrial installation, shipbuilding, aerospace manufacturing, mechanical calibration, and infrastructure projects.
