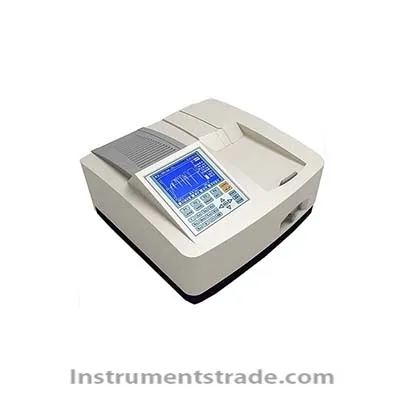

EV-2800 single beam UVVIS Spectrophotometer for Material analysis

Product ID：FGfg004

Price: US$2,200.00 ~ US$3,950.00 PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model NumberEV-2800

Brand NameYIMA

Payment TermsT/T, paypal

Introduction:
EV-2800 spectrophotometers are single beam optical system. EV-2800 are with 1.8nm fixed bandwidth. They have a large LCD, can do quantitative test and qualitative test. It is widely used in colleges and QC labs.
Features
Excellent optical system ensure low noise and Low stray light
High speed MCU, high precision AD, large storage capacity
Large LCD display (320*240 Dots)
High quality grating, detector and lamps
Data and Curve can be stored in real-time
Auto setting WL, auto Blank
Lamps can be turned on/off individually
Easy to change Pri-aligned lamps
Reinforced baseboard and bracket assures durability
Specifications:

Model	EV-2800
Wavelength Range	320-1100nm
Spectral Bandwidth	1.8nm
Optical System	Single Beam, Blazed Holographic Grating (1200 lines/mm)
Wavelength Accuracy	±0.5nm
Wavelength Repeatability	≤0.2nm
Wavelength Setting	Auto, Resolution 0.1nm
Photometric Range	0~200%T, -0.3~3A, 0~9999C
Photometric Accuracy	±0.002A (0~0.5A), ±0.003A (0.5~1A), ±0.3%T (0~100%T)
Photometric Repeatability	≤0.001A (0~0.5A), ≤0.002A (0.5~1A), ≤0.2%T (0~100%T)
Stray Light	≤0.05%T(220/360nm)
Scan Speed	High, Medium, Low. Max.3000nm/minute
Baseline Flatness	±0.002A
Stability	±0.002A/h (500nm,0A)
Noise	≤0.2%T/3min (250/500nm,0%T); ≤0.5%T/3min (250/500nm,100%T)
Sample Compartment	Accommodate 5-100mm Pathlength Cuvette
Detector	Silicon Photodiode
Lamps	Tungsten Lamp & Deuterium Lamp (Pre-aligned)
Display	Graphic LCD (320x240 Dots)
Keypad	30-key Alphanumeric Membrance Keypad
Output Port	USB Port & RS232 Port
Printer	Mini Serial Printer; PC Printer
PC Software	Optional PC Scanning Software
Power Requirements	AC 90-250V,50/60Hz
Dimension	545x468x245mm
Weight	18kg

Introduction:
EV2800 spectrophotometers are single beam optical system. EV2800 are with 1.8nm fixed bandwidth. They have a large LCD, can do quantitative test and qualitative test. It is widely used in colleges and QC labs.
