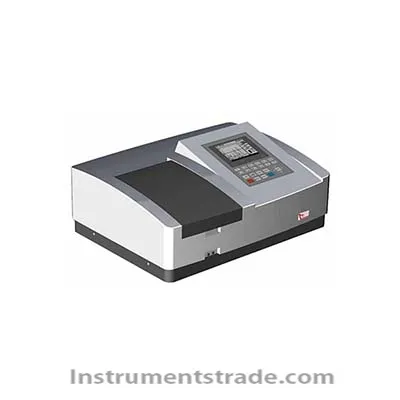

UV-6100S PCS dual- beam UV Vis spectrophotometer

Product ID：FGfg001

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model NumberUV-6100S

Brand NameYIMA

Payment TermsT/T, paypal

Brief introduction
1.GLP self-identification function , according to the need to keep the wavelength accuracy and photometric accuracy of detection equipment
2.The instrument can perform automatic wavelength calibration, automatic wavelength setting , automatic switching light and dark current correction
3.fully sealed structure and mirror Si02 protective film , the full impact of optical components by reducing the ambient air and the environment
4.Unique optical design and fourth gear adjustable bandwidth selection and testing to better meet your needs for different bandwidths
5.Large sample room, which can accommodate a variety of 5-100mm cuvettes ; supports a variety of optional accessories ( eight joint holder , micro adjustable cuvette holder , etc. ) , greatly improving the efficiency of the test
6.The PC scanning software directly online operation , a variety of quantitative analysis
7.can be directly connected to the printer ( optional ) , print maps and experimental data can be imported into Excel or word
Technical parameters

Model	UV-6100S/UV-6100PCS
Wavelength range	190-1100nm
Spectral Bandwidth	0.5nm/1.0nm/2.0nm/4.0nm Adjustable
Optical system	High-performance dual-beam holographic grating 1200 / mm
Stray light	0.03%T(220nm,340nm)
Scan speed	High, medium and low speed options up to 3800nm / min
Luminosity range	-4 ~ 4A, 0-200%T.0-9999C
Working Mode	A, T, C, E
Light source	Long-life deuterium lamp , tungsten lamp
Detector	Silicon LED
Display mode	320 × 240 dot matrix LCD display
Data output	USB standard data output port, parallel printer output port
Power supply	AC 220V/50Hz or AC 110V/60Hz
Instrument Size	590 x 420 x 260mm
Weight	26kg
