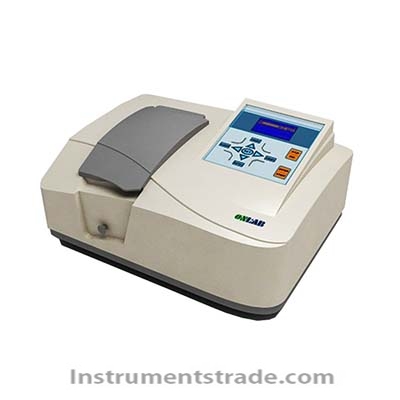

EU-2200 Ultraviolet and Visible Spectrophotometer

Position: Home > > Analytical instruments > Spectroscopy Equipment > spectrophotometer > EU-2200 Ultraviolet and Visible Spectrophotometer

EU-2200 Ultraviolet and Visible Spectrophotometer

Product ID：FGfg018

Price: US$1,480.00 ~ US$2,580.00 PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberEU-2200

Brand NameYIMA

Payment TermsTT，PAYPAL，Alibaba.com Pay

EU-2200 Ultraviolet and Visible Spectrophotometer

Product Introduction
The EU-2200 Ultraviolet and Visible Spectrophotometer is a single-beam UV-Vis spectrophotometer designed for accurate measurement of transmittance, absorbance, and energy across a 190–1100 nm wavelength range. It combines automatic wavelength setting and calibration, dark current blank correction, low stray light, low noise, and high photometric accuracy.
The EU-2200 supports both direct coefficient calculations and standard-curve quantitative analysis. With PC connectivity, users can perform dynamic scanning, map data processing, data management, and report printing, making the instrument suitable for routine laboratory quantitative and spectral analysis.

Performance Features
• 190–1100 nm wavelength coverage for ultraviolet and visible spectral analysis.
• Single-beam optical system with a high-performance 1200 lines/mm grating.
• Imported silicon photodiode detector and long-life tungsten/deuterium light sources.
• High photometric accuracy with low stray light and low baseline drift.
• Automatic wavelength setting and automatic light-source switching.
• Automatic wavelength calibration and dark current blank correction.
• Lattice LCD display with thin-film button keyboard and user-friendly operation.
• Stores standard curves and test data with power-off data retention.
• ARM-based electronics and imported key components for reliable operation.
• PC online functions support dynamic scanning, data processing, and report printing.
• Serial and USB interfaces provide convenient data communication.

Working Principle
The EU-2200 uses a single-beam UV-Vis optical system. Light from the tungsten lamp or deuterium lamp is separated by a high-performance grating into different wavelengths. The selected monochromatic light passes through the sample, and the imported silicon photodiode detects the transmitted optical signal.
The instrument calculates transmittance and absorbance from the measured optical signal. For quantitative analysis, concentration can be determined using either a coefficient method or a standard curve generated from reference standards. Automatic wavelength calibration and dark-current correction help maintain measurement accuracy and stability.

Technical Specifications

Parameter	Specification
Model	EU-2200
Product Type	Ultraviolet and Visible Spectrophotometer
Wavelength Range	190–1100 nm
Optical System	Single beam
Spectral Bandwidth	4 nm; 2 nm optional
Wavelength Accuracy	±1.0 nm
Wavelength Repeatability	≤0.2 nm
Photometric Range	0–200%T, -0.3–3A
Photometric Accuracy	±0.5%T
Photometric Repeatability	≤0.2%T
Stray Light	≤0.1%T
Baseline Flatness	±0.003 A
Baseline Drift	≤0.002 A/h at 500 nm, 0 A, after 2 h warm-up
Noise	±0.001 A at 500 nm, P-P, after 0.5 h warm-up
Grating	High-performance 1200 lines/mm grating
Detector	Imported silicon photodiode
Light Source	Imported long-life tungsten lamp and deuterium lamp
Display	128 × 64 dot-matrix LCD
Keyboard	Poly dome keyboard
Interfaces	Serial port, USB
Power Supply	AC 90–250 V, 50/60 Hz
Dimensions	431 × 318 × 195 mm
Weight	13 kg

Applications
The EU-2200 UV-Vis spectrophotometer is suitable for:
• Routine laboratory absorbance and transmittance measurements
• Quantitative analysis using coefficient and standard-curve methods
• UV-Visible spectral analysis of chemical samples
• Pharmaceutical and chemical laboratory analysis
• Food and beverage testing
• Environmental and water analysis
• Educational and research laboratories
• Quality control and general analytical testing

EU-2200 vs. General UV-Vis Spectrophotometer

Feature	EU-2200	General UV-Vis Spectrophotometer
Wavelength Range	190–1100 nm	Model dependent
Optical System	Single beam	Single or double beam
Spectral Bandwidth	4 nm, 2 nm optional	Model dependent
Wavelength Calibration	Automatic	Model dependent
Dark Current Correction	Automatic	Model dependent
Light Source Switching	Automatic	Model dependent
Stray Light	≤0.1%T	Model dependent
PC Connectivity	Serial + USB	Model dependent
Dynamic Scanning	Supported via PC	Model dependent
Standard Curve Analysis	Supported	Commonly supported
Data Storage	Standard curves and test data	Model dependent

FAQ
1. What wavelength range does the EU-2200 cover?
The EU-2200 covers 190–1100 nm, supporting both ultraviolet and visible spectral measurements.
2. Is the EU-2200 a single-beam spectrophotometer?
Yes. It uses a single-beam optical system with a high-performance 1200 lines/mm grating.
3. What measurements can the EU-2200 perform?
The instrument supports transmittance, absorbance, and energy measurement modes.
4. Does the EU-2200 support quantitative analysis?
Yes. It supports both the coefficient method and standard-curve analysis for quantitative measurements.
5. Does it automatically calibrate the wavelength?
Yes. Automatic wavelength setting, wavelength calibration, light-source switching, and dark-current blank correction are supported.
6. Can the instrument connect to a computer?
Yes. The EU-2200 provides serial and USB interfaces. PC online functions include dynamic scanning, data processing, and report printing.
7. What light sources are used?
The instrument uses an imported long-life tungsten lamp and deuterium lamp for the UV-Visible wavelength range.
8. What is the optional spectral bandwidth?
The standard spectral bandwidth is 4 nm, with 2 nm available as an option.
