ELS Series High Precision Digital Level

Product ID：CLCDqtOther033

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberELS Series

Brand NameSZYIGUANG

Payment TermsTT，PAYPAL，Alibaba.com Pay

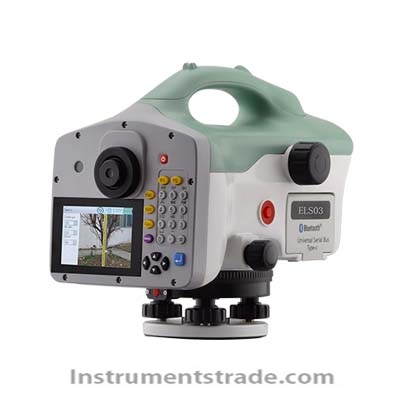

ELS Series High Precision Digital Level
Product Introduction
ELS Series High Precision Digital Level is an advanced electronic surveying instrument designed for high-precision elevation measurement, engineering surveying, and deformation monitoring. Combining a high-performance optical system, intelligent electronic control technology, automatic leveling functions, and digital measurement capabilities, the ELS Series provides millimeter-level accuracy for demanding applications such as highways, railways, hydraulic engineering, and structural settlement monitoring.
With a newly optimized optical design featuring up to 43× magnification and 50mm effective aperture, the instrument delivers clear and stable images even under challenging conditions such as tunnels, forests, and low-light environments. The integrated electric leveling base, wide-angle camera, and electronic bubble system simplify field operation and significantly improve measurement efficiency.
The ELS Series achieves 0.2mm/km leveling accuracy and supports a measurement range of up to 200m, providing reliable performance for professional surveying projects requiring high precision and long-distance observation.

Key Features
• Automatic Electric Leveling Base
The integrated electric leveling base combines high-precision sensors with intelligent algorithms to achieve automatic instrument leveling with one-touch operation.
Benefits include:
• Eliminates complicated manual leveling procedures
• Reduces operator workload and training requirements
• Improves leveling efficiency in field environments
• Provides stable and reliable instrument setup

• Wide-Angle Camera for Fast Target Recognition
The built-in wide-angle camera provides a broad field of view, helping operators quickly locate and lock onto leveling staffs.
Advantages:
• Quickly identifies staffs in complex environments
• Reduces repeated instrument adjustment time
• Improves measurement speed and workflow efficiency

• Electronic Bubble System
The electronic bubble replaces traditional visual bubble leveling with digital monitoring technology.
Features:
• Real-time instrument leveling status display
• Reduced influence from lighting conditions and viewing angle
• Improved leveling accuracy and operational reliability

• High Precision Measurement Performance
With a leveling accuracy of up to 0.2mm/km, the ELS Series provides reliable measurement results for precision engineering projects.
Typical applications include:
• Highway construction control networks
• Railway engineering surveying
• Large-scale hydraulic projects
• Building settlement monitoring
• Structural deformation analysis

• Long Measurement Range up to 200m
Through optical optimization, electronic control, and advanced algorithms, the ELS Series extends measurement capability up to 200 meters.
Benefits:
• Covers larger surveying areas
• Reduces instrument repositioning frequency
• Improves field productivity

• High Performance Telescope System
The optimized telescope system provides excellent observation performance.
Main optical advantages:
• Up to 43× magnification
• 50mm effective aperture
• Clear and sharp staff images
• Excellent visibility in low-light environments

Working Principle
The ELS Series High Precision Digital Level uses electronic image recognition technology to automatically read coded leveling staffs and calculate elevation differences with high accuracy.
The measurement process includes:
The telescope captures the barcode staff image through the precision optical system.
The electronic sensor analyzes the coded scale information.
The internal processor calculates height differences and distance values.
The automatic compensation system corrects instrument inclination errors.
Measurement results are displayed and stored digitally.
The combination of optical imaging, electronic recognition, and intelligent compensation technology enables fast, accurate, and repeatable surveying results.

Technical Parameters

Parameter	ELS02 / ELS03	ELS05 / ELS07
Leveling Accuracy (1km double run)	0.2mm (ELS02) / 0.3mm (ELS03)	0.5mm (ELS05) / 0.7mm (ELS07)
Digital Reading Staff	Invar barcode staff	Fiberglass barcode staff
Distance Measurement Accuracy	D≤10m: <±10mm; D＞10m: ±0.1%×D mm	Same
Measurement Range	2–200m	2–180m
Minimum Display Resolution (Height)	0.01mm / 0.0001ft selectable	Same
Minimum Display Resolution (Distance)	1mm / 0.01ft selectable	Same
Measurement Time	2s	2s
Telescope Magnification	43×	38×
Effective Aperture	50mm	45mm
Minimum Focusing Distance	0.9m	1.0m
Resolution	3″	3.3″
Compensator Range	±14′	±14′
Compensator Accuracy	0.2″	0.2″
Internal Storage	2GB + 16GB USB drive	2GB + optional USB
Data Management	Supported	Supported
Wide Angle Camera	Standard	Optional (ELS05), unavailable (ELS07)
Camera Field of View	6°×5°	6°×5°
Camera Frame Rate	20 fps	20 fps
Electronic Bubble	Standard	Optional / unavailable
Electronic Bubble Working Range	0.13°	0.13°
Electronic Bubble Accuracy	0.015°	0.015°
Electric Leveling Base	Optional	Optional / unavailable
Leveling Range	3.5°	3.5°
Voice Prompt	Available	Available
Circular Bubble	8′/2mm	8′/2mm
Display	3.5-inch color touchscreen, 320×480 resolution	Same
Keypad	25 keys	23 keys
i Angle Inspection Program	Available	Available
Communication Interface	Type-C, Bluetooth, USB, RS-232 optional	Same
Protection Rating	IP54 (including battery)	IP54
Operating Temperature	-20℃ to +50℃	-20℃ to +50℃
Storage Temperature	-40℃ to +70℃	-40℃ to +70℃
Battery	2600mAh / 7.2V lithium battery	Same
Operating Time	More than 12 hours	More than 12 hours
Weight	4.1kg (battery included, ELS02 information provided)	Not provided

Application Areas
• Highway and Railway Construction Surveying
The high precision leveling capability ensures accurate elevation control during large-scale transportation infrastructure projects.
• Hydraulic Engineering Projects
Suitable for dam construction, water conservancy facilities, and large engineering deformation monitoring.
• Building Settlement Monitoring
Provides reliable elevation data for long-term structural settlement observation.
• Geotechnical and Deformation Monitoring
Used for monitoring ground movement, foundation deformation, and engineering stability.
• Precision Engineering Surveying
Ideal for professional surveying organizations requiring high accuracy and digital workflow efficiency.

ELS Series vs Traditional Optical Level

Comparison Item	ELS Series Digital Level	Traditional Optical Level
Measurement Method	Automatic electronic reading	Manual optical reading
Accuracy	Up to 0.2mm/km	Depends heavily on operator skill
Staff Recognition	Automatic barcode recognition

Frequently Asked Questions (FAQ)
1. What is an ELS Series High Precision Digital Level used for?
ELS Series Digital Level is mainly used for precision elevation measurement, engineering surveying, railway and highway construction, deformation monitoring, and settlement observation.
2. What accuracy can the ELS Series achieve?
The highest accuracy model, ELS02, provides 0.2mm/km leveling accuracy, making it suitable for high-precision control networks.
3. What is the maximum measurement distance?
The ELS02 and ELS03 models support measurement distances up to 200 meters, while ELS05 and ELS07 support up to 180 meters.
4. Does the instrument support automatic leveling?
Yes. Selected models support an electric leveling base that automatically adjusts the instrument using intelligent sensors and algorithms.
5. Can it work in low-light environments?
Yes. The high-performance telescope with large aperture provides clear staff images in tunnels, forests, and other low-light conditions.
6. Which ELS model should I choose?
ELS02/ELS03 are recommended for projects requiring the highest accuracy and advanced functions. ELS05/ELS07 are suitable for general engineering surveying with different budget requirements.
7. What industries commonly use this digital level?
It is widely used in:
• Surveying and mapping companies
• Highway and railway construction
• Civil engineering projects
• Water conservancy engineering
• Infrastructure monitoring organizations
