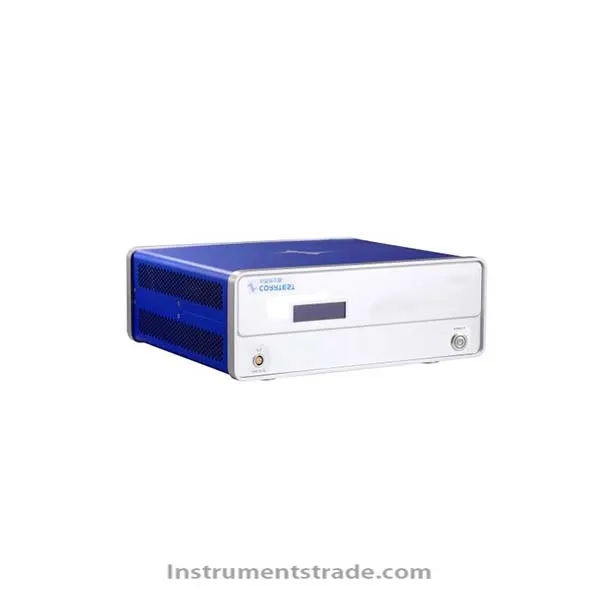

CS350M Electrochemical Workstation

Product ID：FDgzz024

Price: US$6,880.00 ~ US$7,980.00 PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberCS350M

Brand NameKESITE

Payment TermsTT,PAYPAL

CS350M Electrochemical Workstation
Introduction:
     CS electrochemical workstation adopts fully floating design, with excellent stability and accuracy, advanced hardware and well-functioning software, providing excellent scientific research for scientific and technological workers involved in energy, materials, life science, environmental protection and other fields platform.
application:
   (1) Research on the performance of energy materials (lithium-ion batteries, solar cells, fuel power cells and supercapacitors, etc.), advanced functional materials and sensors;
   (2) Electrochemical analysis research;
   (3) Research on the reaction mechanism of electrosynthesis, electrodeposition (electroplating), anodization, electrolysis, etc.;
     (4) Corrosion behavior research and corrosion resistance evaluation of metal materials;
   (5) Rapid evaluation of corrosion inhibitor, water quality stabilizer, coating and cathodic protection efficiency.
Features:
1. Dual-channel correlation analyzer and dual-channel high-speed 16bit/high-precision 24bit AD converter
2. Built-in FRA frequency response analyzer, frequency range 10μHz ~1MHz
3. Amplifier with high bandwidth and high input impedance
4. Built-in FPGA DDS signal synthesizer
5. High power potentiostat/galvanostat/zero resistance ammeter
6. Voltage control range: ±10V, tank voltage is ±21V
7. Current control range: ±2.0A
8. Potential resolution: 10μV, current resolution: 1pA (extendable to 100fA)
Technical parameter:

Constant potential control range:	±10V
Precision of potential control:	0.1%
Potential sensitivity:	1μV
Potential rise time:	1μs
Reference electrode input impedance:	1013Ω\|\|8pF
Slot pressure output:	± 21V (optional 30V)
CV and LSV scanning speed:	0.001mV～10000V/s
CA and CC pulse width:	0.0001～65000s
SWV frequency:	0.001～100KHz
AD data collection:	16bit@1MHz ， 20bit @1KHz
DA resolution:	16 bit, setup time: 1 μ s
Communication interface:	USB 2.0, RJ45 Ethernet port
Dimensions (mm):	365(W)338(D)140(H)
Constant current control range:		± 2A (expandable to 20A/40A/100A)
Current control accuracy:		0.1%
Current sensitivity:		1pA (optional 100fA)
Current range:		2A~2nA 10 levels
Maximum output current:		± 2A (expandable to 20A/40A/100A)
Current scan increment:		1mA@1A /ms
Potential scan potential increment:		0.076mV @1V/ms
DPV and NPV pulse width:		0.0001～1000s
Minimum potential increment of CV:		0.020mV
Current and potential range:		Automatic setting
Low pass filter:		8-segment programmable
Instrument weight:		7.6Kg

application
1) Research on the performance of energy materials (lithium-ion batteries, solar cells, fuel power cells, supercapacitors, etc.), advanced functional materials, and sensors;
2) Electrochemical analysis research;
3) Research on reaction mechanisms such as electro synthesis, electro deposition (electroplating), anodic oxidation, and electrolysis;
4) Research on Corrosion Behavior and Corrosion Resistance Evaluation of Metal Materials;
5) Rapid evaluation of corrosion inhibitors, water quality stabilizers, coatings, and cathodic protection efficiency.
Software Features
① Data analysis
Smooth, integrate, and differentiate the volt ampere curve, calculate the peak current, peak potential, and peak area of each oxidation-reduction peak, etc;
Three parameter or four parameter dynamic analysis of polarization curve, calculation of Tafel slope ba, bc， The corrosion current density icorr, ultimate diffusion current, polarization resistance Rp, and corrosion rate can also be calculated from the electrochemical noise spectrum to determine the power spectral density, noise resistance Rn, and spectral noise resistance Rsn (f).
② Real time storage
CS Studio stores measurement data in real-time, and even if the test is interrupted due to power outage, the data before the interruption will be automatically saved.
③ Timed measurement
The CS Studio testing software has a timed measurement function. For some cases where the characteristics of the system changing over time need to be studied, the testing parameters and interval time can be set in advance, allowing the instrument to automatically measure at a timed time without human supervision, providing convenience for experiments.
