CS350 Electrochemical Workstation

Product ID：FDgzz002

Price: US$6,900.00 ~ US$7,500.00 PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberCS350

Brand NameKESITE

Payment TermsTT，PAYPAL，Alibaba.com Pay

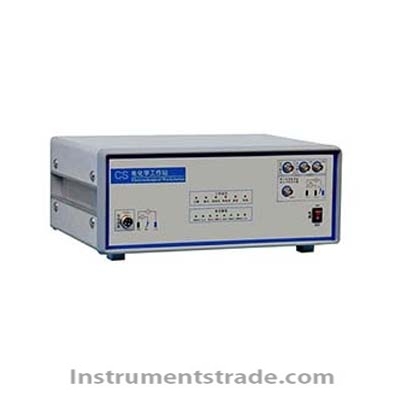

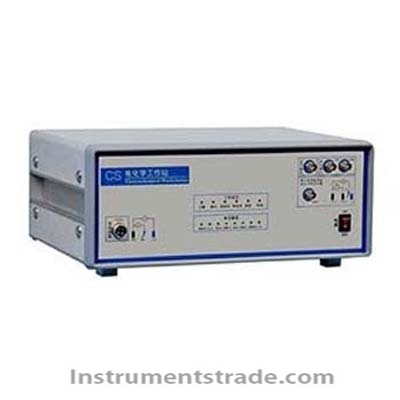

CS350 Electrochemical Workstation
Product Introduction
The CS350 Electrochemical Workstation is a high-performance potentiostat/galvanostat and electrochemical analyzer designed for electrochemical research, material characterization, corrosion testing, electrochemical synthesis, and quantitative analysis.
The CS350 integrates a high-speed MCU, precision FET integrated circuits, digital DDS signal synthesis, high-power potentiostat/galvanostat, dual-channel analysis, and high-precision 16-bit/24-bit AD conversion. It supports a broad range of electrochemical techniques, including cyclic voltammetry (CV), linear sweep voltammetry (LSV), square wave voltammetry (SWV), differential pulse voltammetry (DPV), normal pulse voltammetry (NPV), staircase cyclic voltammetry (SCV), and electrochemical impedance spectroscopy (EIS).
All measurement functions can be automatically timed, enabling unattended and automated electrochemical measurements. USB 2.0 communication provides convenient plug-and-play connection between the workstation and computer.

Key Features
• Multi-function electrochemical workstation integrating potentiostat and galvanostat functions.
• Supports CV, LSV, SCV, SWV, DPV, NPV and DNPV electroanalytical techniques.
• Supports EIS, electrochemical noise, polarization, current/voltage steps and zero-resistance ammeter measurements.
• High-speed MCU + DDS digital signal synthesis for efficient signal generation and processing.
• 16-bit/24-bit AD conversion for high-resolution electrochemical data acquisition.
• Dual-channel high-speed correlation analysis for advanced electrochemical measurements.
• High-power potentiostat/galvanostat for a wide range of electrochemical experiments.
• Automatic timing supports unattended long-duration measurements.
• USB 2.0 interface provides simple computer communication and plug-and-play installation.
• Floating mode supports corrosion measurements on grounded autoclave systems and large grounded metal structures.

Working Principle
The CS350 controls the electrochemical potential or current applied to the electrochemical cell through its potentiostat/galvanostat circuit. The instrument generates precisely controlled excitation signals using the internal DDS digital signal synthesizer and measures the resulting current or potential response through high-precision analog-to-digital conversion.
For voltammetric techniques such as CV, LSV, DPV, and SWV, the workstation applies a programmed potential waveform and records the resulting electrochemical current response. For galvanostatic or potentiostatic polarization, the system maintains a specified current or potential while monitoring the electrochemical response.
For EIS, the CS350 applies an AC perturbation over the selected frequency range and analyzes the corresponding current and voltage response to characterize electrochemical impedance behavior.
The workstation can automatically execute programmed measurement sequences and record data through USB-connected computer software, enabling efficient and unattended electrochemical testing.

Technical Specifications

Parameter	Specification
Model	CS350
Instrument Type	Electrochemical workstation / potentiostat / galvanostat
Core Processor	High-speed MCU
Signal Generation	Internal digital DDS synthesizer
AD Conversion	16-bit / 24-bit
Measurement Channels	Dual-channel
Potentiostat	High-power potentiostat
Galvanostat	High-power galvanostat
Voltammetry	LSV, CV, SCV, SWV, DPV, NPV, DNPV
Polarization	Potentiostatic / galvanostatic polarization
Scanning	Potential scanning
Square Wave	Programmable constant-current/constant-potential square wave
Step Measurements	Multi-current / multi-potential step
EIS	Supported
Electrochemical Noise	Current electrochemical noise measurement
Zero-Resistance Ammeter	Supported
Automatic Timing	Supported
Computer Interface	USB 2.0
Installation	Plug-and-play
Floating Mode	Supported
Dimensions	36.5 × 30.5 × 16 cm (W × D × H)
Weight	6.5 kg

Applications
1. Electrochemical Mechanism Research
Used to investigate electrochemical reaction mechanisms and perform qualitative and quantitative analysis of electroactive substances.
2. Electrochemical Synthesis and Electrodeposition
Suitable for electrochemical synthesis, electrodeposition/electroplating, and evaluation of electrochemical deposition performance.
3. Energy and Functional Materials
Applicable to research on batteries, supercapacitors, nanomaterials, biosensors, and other functional or energy materials.
4. Corrosion and Protection Research
Used for rapid evaluation of corrosion inhibitors, water stabilizers, coatings, cathodic protection, and hydrogen permeation performance.
5. Environmental Corrosion Testing
Suitable for electrochemical corrosion testing of conductive metals in water, concrete, soil, and other environments.
6. Online Corrosion Monitoring
The floating mode enables electrochemical measurements on grounded autoclave systems and online corrosion monitoring of grounded metal structures such as bridges and reinforced concrete structures.

CS350 vs. Conventional Electrochemical Analyzer

Feature	CS350 Electrochemical Workstation	Conventional Electrochemical Tester
Potentiostat	High-power integrated system	Depends on model
Galvanostat	Supported	Depends on model
CV / LSV	Supported	Usually supported
DPV / SWV / NPV	Supported	May be limited
EIS	Supported	May require dedicated equipment
Electrochemical Noise	Supported	Often unavailable
Zero-Resistance Ammeter	Supported	Limited availability
Automatic Measurement	Supported	Depends on software
AD Conversion	16-bit / 24-bit	Varies
Computer Interface	USB 2.0	Varies
Floating Mode	Supported	Not always available
Application Range	Research, materials, corrosion, energy, synthesis	Often application-specific

Frequently Asked Questions (FAQ)
1. What is the CS350 electrochemical workstation used for?
The CS350 is used for electrochemical research, electroanalytical measurements, corrosion testing, electrochemical synthesis, electrodeposition, energy-material evaluation, and EIS measurements.
2. Which electrochemical techniques does the CS350 support?
It supports LSV, CV, SCV, SWV, DPV, NPV, DNPV, potentiostatic/galvanostatic polarization, potential scanning, current/potential step measurements, EIS, electrochemical noise, and zero-resistance ammeter measurements.
3. Can the CS350 perform electrochemical impedance spectroscopy?
Yes. The CS350 supports EIS (electrochemical impedance spectroscopy) for investigating charge transfer, interfacial processes, corrosion behavior, coatings, batteries, and other electrochemical systems.
4. Does the CS350 support unattended measurements?
Yes. Measurement functions can be automatically timed, allowing programmed experiments to run without continuous operator supervision.
5. How does the CS350 connect to a computer?
The workstation uses a USB 2.0 interface for computer communication and supports simple plug-and-play installation.
6. Can the CS350 be used for corrosion testing?
Yes. It is suitable for corrosion studies of conductive metals in water, concrete, soil, autoclaves, coatings, and other environments, as well as corrosion inhibitor and cathodic protection evaluation.
7. What is the purpose of the floating mode?
Floating mode is designed for electrochemical measurements where the tested structure is grounded, such as grounded autoclave reactors, bridges, and reinforced concrete structures, helping enable online corrosion measurements in these configurations.
8. What are the dimensions and weight of the CS350?
The instrument measures approximately 36.5 × 30.5 × 16 cm and weighs 6.5 kg.
