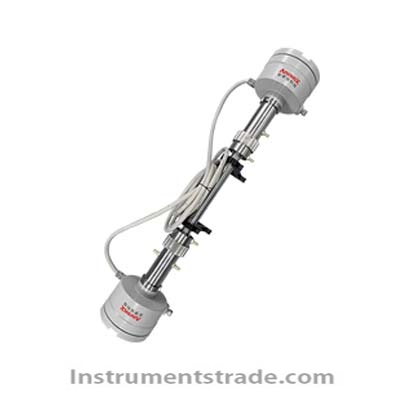

ARX6100 Laser Gas Analyzer Introduction: The ARX6100 (CO/O2) laser gas analyzer is capable of performing online measurements of gas concentration and other parameters in various environments, especially in harsh conditions such as high temperature, high pressure, high dust, and strong corrosion. It offers accurate measurements, fast response times, high reliability, and low operating costs. Features: 1. Not affected by background gas 2. Not subject to dust interference 3. Automatically correct the influence of temperature and pressure on measurements 4. Safety and explosion-proof Technical Specifications: Measurement principle: Semiconductor laser absorption spectroscopy technology (DLAS/TDLAS) Measured components: CO, O₂ (two components) Measurement range: Customizable (Common: CO 0–100% vol; O₂ 0–25% vol) Measurement accuracy: ≤ ±1% F.S. (full scale) Zero drift: ≤ ±1% F.S./month Span drift: ≤ ±1% F.S./month Response time: ≤ 1 second (T90, in-situ type) Resolution: 0.01% vol Optical path length: Customizable (0.5–10 m)
