AGA800 gas analyzer

Product ID：HQZXyanqi057

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberAGA800

Brand NameANRONGXIN

Payment TermsTT，PAYPAL，Alibaba.com Pay

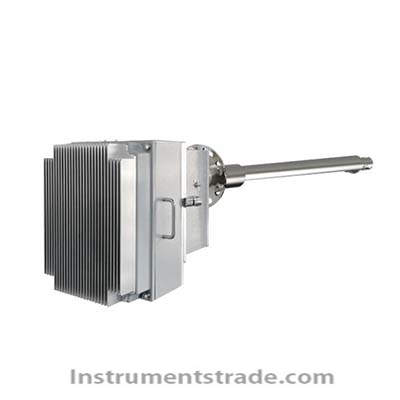

AGA800 gas analyzer
Introduction:
The AGA800 gas analyzer, independently developed by our company, utilizes Differential Optical Absorption Spectroscopy (DOAS) technology to achieve online monitoring of SO2, NOx (NO and NO2) in flue gases. This product adopts an in-situ installation method, directly sampling and measuring within the flue gas duct, significantly reducing system response time. It can overcome harsh environmental conditions such as high temperature and humidity, reduce the risk of blockage, prevent water-soluble loss of the components to be measured, and ensure more accurate measurements. The AGA800 can be efficiently used for flue gas emission concentration monitoring and precise control during desulfurization and denitrification processes.
Features:
1. High range ratio and adaptive range switching algorithm, capable of meeting the measurement needs of flue gas in different process sections, especially suitable for inlet and outlet monitoring of denitrification processes in domestic thermal power plants; 2.
Automatic optical calibration module, effectively solving the problem of data drift during long-term operation of the instrument, without manual calibration; 3.
Measurement extraction within the flue environment, with a response time of ≤8s;
4. Heat tracing temperature up to 400℃, with no risk of pipeline blockage or corrosion, and no loss of components to be measured;
5. Accurate measurement of NOx under high sulfur conditions.
Technical parameters:

Measurement object	SO₂/NO/NO₂ in industrial waste gas
mechanical properties	Weight: 45kg
mechanical properties	Dimensions: Electric control box (480H×350W×180D) mm Measuring unit (300H×400W×313D) mm, probe length 1600mm
Measured components	SO₂	NO	NO₂
Measuring principle	DOAS	DOAS	DOAS
measurement range	(0～100～8000)mg/m³	(0～100～1000)mg/m³	(0～500)mg/m³
Minimum detection limit	≤0.5%F.S.	≤0.5%F.S.	≤0.5%F.S.
indication error	≤±2%F.S.	≤±2%F.S.	≤±2%F.S.
repetitiveness	≤2%	≤2%	≤2%
zero drift	≤±2%F.S.	≤±2%F.S.	≤±2%F.S.
Range drift	≤±2%F.S.	≤±2%F.S.	≤±2%F.S.
ambient temperature	(-10～50)℃
Work flow range	1L～2L/min
Power supply requirements	220V AC/50Hz 1000W
Interface characteristics	Communication interface: 1 channel RS485, 1 channel RS232
Interface characteristics	Other interfaces: current loop output
