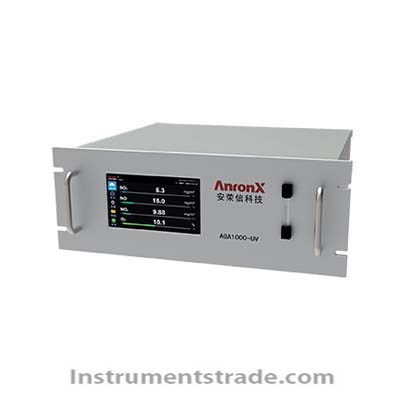

AGA1000-UV Ultra-low Online Flue Gas Analyzer

Product ID：HQZXyanqi060

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberAGA1000-UV

Brand NameANRONGXIN

Payment TermsTT，PAYPAL，Alibaba.com Pay

AGA1000-UV Ultra-low Online Flue Gas Analyzer
Introduction:
AGA1000-UV is an analytical instrument used for online monitoring of gaseous pollutants (SO2, NO, NO2, O2) in the Continuous Emission Monitoring System (CEMS). Utilizing ultraviolet differential absorption spectroscopy technology, it is less susceptible to interference from moisture and other gases compared to the NDIR method. It boasts advantages such as simple equipment composition, high measurement accuracy, good repeatability, reliability, and durability, making it particularly suitable for continuous online monitoring of ultra-low emissions of SO2, NO, NO2, and O2.
Features:
1. Ultra-low DOAS algorithm and spectral equalization technology significantly enhance measurement accuracy and lower the detection limit;
2. The fully-spaced coupled optical structure eliminates issues related to fiber connections and UV aging, significantly enhancing equipment reliability;
3. A specially customized high-sensitivity spatial coupling spectrometer for full-spectrum analysis;
4. Intelligent control of pulsed xenon light source, featuring long lifespan and high precision. Core components maintain high-precision constant temperature, eliminating the impact of environmental temperature changes on measurements.
Technical parameters:

Measured components	SO₂	NO	NO₂	O₂
Measuring principle	DOAS	DOAS	DOAS	electrochemistry
measurement range	(0~45~750)mg/m³ (0~500~4000)mg/m³ Configurable	(0~45~750)mg/m³ (0~500~4000)mg/m³ Configurable	(0~100~600)mg/m³ (0~500~4000)mg/m³ Configurable	(0~25)%
Minimum detection limit	≤0.5%F.S.	≤0.5%F.S.	≤0.5%F.S.	≤0.5%F.S.
indication error	≤±2%F.S.	≤±2%F.S.	≤±2%F.S.	≤±2%F.S.
repetitiveness	≤2%	≤2%	≤2%	≤2%
zero drift	≤±2%F.S.	≤±2%F.S.	≤±2%F.S.	≤±2%F.S.
Range drift	≤±2%F.S.	≤±2%F.S.	≤±2%F.S.	≤±2%F.S.
Response time (T90)	≤90s	≤90s	≤90s	≤60s
ambient temperature	(15~35)℃
Work flow range	(1~2)L/min
Power supply requirements	220VAC/50Hz 300W
Dimensions & Weight	(177x440x390)mm(H×W×D),13kg
Interface characteristics	Communication interface: 1 channel RS485, 1 channel RS232
Interface characteristics	Other interfaces: digital output, digital input, current loop output
