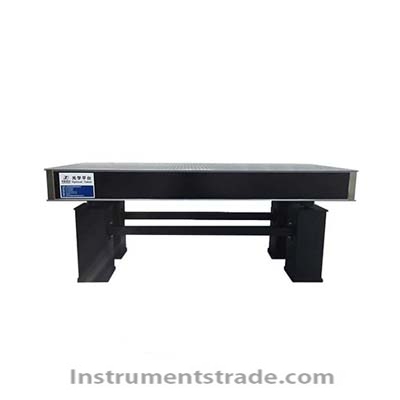

ZPT-G-M precision damping vibration isolation optical platform

Product ID:GSYgxpt004

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Brand NameWUHANZHONGHANG
    Payment TermsT/T, paypal
    Model NumberZPT-G-M
    ZPT-G-M precision damping vibration isolation optical platform

    Features:
    1. AVIC Century Co., Ltd. relies on the background of aviation industry personnel to develop and manufacture a table-type vibration isolation optical platform with an array of threaded holes on the surface. It integrates the national standard damping rubber pad and has good vibration isolation effect.
    2. The platen adopts the honeycomb core plywood structure, which has the advantages of light weight, high rigidity and high damping. The upper panel is 1cr17 high-quality high-magnetic stainless steel, which is precisely ground and has high surface flatness. The gyro-polished process removes the burrs to achieve a non-reflective, matt effect, and the panel has M6 tapped holes for easy attachment of optical components.
    3. The polymer composite rubber pad provides vibration isolation capability for high frequency vibration.
    4. The vibration isolation support is welded by high-quality steel pipe. The whole is solid and reliable. It can be installed with standard moving casters to facilitate moving in the workplace.
    5. The unique level adjustment mechanism can achieve the purpose of easy horizontal adjustment and high stability.
    Technical indicators:
    Flatness: < 0.05mm/m2
    Surface roughness: < 0.8μm
    Natural frequency; x direction: 3.5 Hz to 6 Hz y direction: 3.5 Hz to 6 Hz
    Amplitude: < 5μm
    Load capacity: 800kg/m2
    Repeat positioning accuracy: ±0.05mm
