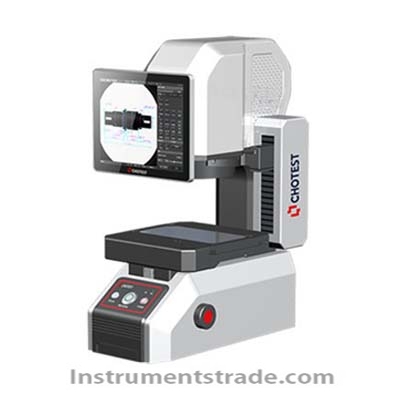

VX3000 Series Flash Measurement Instruments Introduction: The VX3000 series flash tester utilizes dual telecentric high-resolution optical lenses, combined with high-precision image analysis algorithms, and incorporates the one-click flash measurement principle. In CNC mode, simply press the start button, and the instrument can automatically locate the measurement object, match the template, perform measurement evaluation, and generate reports based on the shape of the workpiece, truly achieving one-click rapid and precise measurement. Product advantages: Traditional measuring instruments such as projectors, image measuring instruments, tool microscopes, profilometers, vernier calipers, micrometers, etc., face numerous challenges during measurement, such as time-consuming positioning of measurement objects and origin points, long operation time for batch measurement, inconsistent measurement results due to different measurement personnel, and complex data statistics management. The VX3000 series flash tester will overcome the challenges faced by traditional measuring instruments in inspection. Its advantages include: One-click quick test, faster batch processing 1. Place products arbitrarily without the need for fixture positioning. The instrument automatically identifies and matches templates, enabling one-click measurement; 2. It can measure up to 512 parts simultaneously; 3. Supports CAD drawing import, with one-click automatic measurement matching; 4. In CNC mode, batch measurements can be quickly and accurately conducted. Accurate calculation, stable and reliable 1. High-resolution lens, 1% sub-pixel image processing, high-precision algorithm analysis; 2. Automatic focusing eliminates interference from manual measurement operations and ensures high consistency in repeated focusing; 3. Automatically identify the measurement site, ensuring consistent and stable measurement results every time. 4. Advanced algorithms, certified by PTB (German Federal Institute of Physics and Technology). Easy to operate, hassle-free 1. Anyone can quickly get started with it, without requiring complex training; 2. With a concise operation interface, anyone can easily set up and measure; 3. Immediately evaluate the measurement dimensional deviation on-site, and generate statistical analysis, inspection result reports, etc. with one click. Rich in functions, automatic reporting 1. The software is divided into five functional modules: measurement setting, single-piece measurement, CNC measurement, automatic measurement, and statistical analysis; 2. Provides up to 80 extraction and analysis tools, including [Feature Extraction] tools (such as extremum points, centerlines, arcs, peak circles, etc.), [Auxiliary Tools] (such as arbitrary point-line-circle, fitted straight line, fitted circle, tangent, inscribed circle, etc.), [Intelligent Annotation] tools, [Geometric Tolerance] tools, and special [Application Tools] (such as chamfering, fillet, pitch distance, pitch angle, circle-radius cross, slot hole, thread, spring, seal ring, etc.); 3. Automatically generate SPC analysis reports, capable of outputting statistical values (such as CA, PPK, CPK, PP, etc.) and control charts (including mean and range charts, mean and standard deviation charts, median and range charts, and single value and moving range charts).
VX3000 Series Flash Measurement Instruments Introduction: The VX3000 series flash tester utilizes dual telecentric high-resolution optical lenses, combined with high-precision image analysis algorithms, and incorporates the one-click flash measurement principle. In CNC mode, simply press the start button, and the instrument can automatically locate the measurement object, match the template, perform measurement evaluation, and generate reports based on the shape of the workpiece, truly achieving one-click rapid and precise measurement.
