T1001 Multi-Channel Temperature Meter

Position: Home > > Measurement instrument > Temperature measuring instrument > thermometer > T1001 Multi-Channel Temperature Meter

T1001 Multi-Channel Temperature Meter

Product ID：CLWDwdj039

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberT1001

Brand NameXAXIAXI

Payment TermsTT，PAYPAL，Alibaba.com Pay

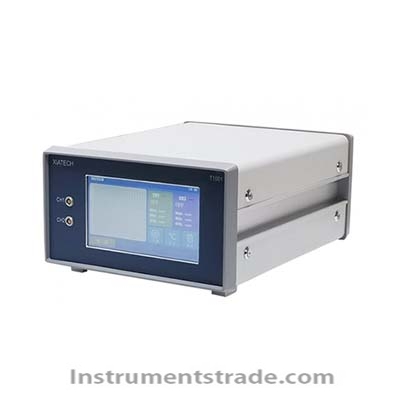

T1001 Multi-Channel Temperature Meter
Product Introduction
The T1001 Multi-Channel Temperature Meter is a high-precision temperature measurement instrument independently developed based on over ten years of expertise in temperature measurement and control technology. Designed for professional temperature metrology and calibration applications, it delivers outstanding accuracy, stability, and ease of operation.
The instrument supports temperature measurement from -200°C to 850°C with an accuracy better than ±0.01°C across the full range. Featuring a 7-inch touchscreen, built-in ITS-90 temperature scale, and support for secondary software development, the T1001 provides a complete solution for high-accuracy temperature acquisition and calibration.

Key Features
1.Expandable Channel Design
• Standard 2-channel configuration.
• Supports up to 3 expansion modules.
• Each expansion module provides 10 additional channels.
2.Exceptional Measurement Accuracy
• Full-range accuracy better than ±0.01°C.
• Resistance measurement accuracy up to ±0.004 Ω.
3.Wide Temperature Range
• Measures temperatures from -200°C to 850°C depending on the selected RTD sensor.
4.Built-in ITS-90 Standard
• Direct temperature display without manual conversion calculations.
5.User-Friendly Touchscreen
• 7-inch color touch display for intuitive operation.
• Reduces training requirements and labor costs.
6.Multiple Measurement Modes
• DIN Mode
• CVD Mode
• ITS-90 Mode
7.Professional Data Management
• Real-time monitoring and multi-channel data logging.
• Raw data storage through dedicated software.

Working Principle
The T1001 measures temperature using Resistance Temperature Detectors (RTDs) such as industrial platinum resistance thermometers, standard platinum resistance thermometers, and copper resistance thermometers.
The instrument accurately measures sensor resistance values and converts them into temperature readings using built-in algorithms compliant with the ITS-90 International Temperature Scale. High-precision resistance measurement circuitry ensures excellent accuracy and long-term stability across the entire measurement range.

Technical Specifications

Parameter	T1001
Temperature Range	-200°C to 850°C
Resistance Range	0 to 400 Ω
Standard Channels	2 Channels
Expansion Capability	Up to 3 expansion modules, 10 channels per module
Supported Sensors	RTD (Platinum & Copper Resistance Thermometers)
Temperature Accuracy	±0.01°C
Resistance Accuracy	±0.004 Ω
Stability	±3 mK / 15 min
Resolution	0.001°C
Annual Drift	< 5 mK/year
Sampling Time	Approx. 1 second per channel
Measurement Units	°C / °F / K / Ω
Display	7-inch Touchscreen
Communication Interfaces	RS-485, USB Type-B
Probe Connection	5-pin Straight Connector
Software Platform	Windows
Dimensions	365 × 260 × 160 mm
Operating Environment	0–40°C, ≤65% RH
Power Supply	110/220 V, 50/60 Hz

Applications
• The T1001 Multi-Channel Temperature Meter is suitable for:
• Temperature calibration laboratories
• National and industrial metrology institutes
• RTD sensor calibration
• Precision temperature measurement systems
• Pharmaceutical and biotechnology laboratories
•I ndustrial process validation
• Scientific research facilities
• Environmental monitoring laboratories
• Manufacturing quality control
• Multi-point temperature data acquisition projects

Comparison with Conventional Temperature Meters

Feature	T1001 Multi-Channel Temperature Meter	Conventional Temperature Meter
Measurement Accuracy	±0.01°C	±0.1°C to ±0.5°C
Temperature Scale Conversion	Built-in ITS-90	Manual calculation often required
Channel Expansion	Up to 32 channels	Limited or fixed channels
Display Interface	7-inch Touchscreen	Buttons or small LCD
Resolution	0.001°C	Typically 0.01°C–0.1°C
Data Logging	Professional software support	Limited
Calibration Applications	Professional metrology grade	General industrial use
Sensor Compatibility	Multiple RTD types	Often limited

FAQ
1. What sensors are compatible with the T1001?
The T1001 supports industrial platinum resistance thermometers (Pt RTDs), standard platinum resistance thermometers (SPRTs), copper resistance thermometers, and other resistance-based temperature sensors.
2. What is the measurement accuracy of the instrument?
The T1001 provides temperature measurement accuracy better than ±0.01°C across its operating range.
3. Does the instrument support multi-channel measurements?
Yes. It comes standard with 2 channels and can be expanded using up to 3 additional modules, each providing 10 channels.
4. Is temperature conversion calculation required?
No. The built-in ITS-90 standard automatically converts resistance values into temperature readings.
5. What temperature units are available?
Users can freely switch between °C, °F, K, and Ω.
6. Can measurement data be stored and exported?
Yes. Dedicated software allows real-time monitoring, data recording, storage, and export of multi-channel measurement results.
7. What industries typically use the T1001?
The instrument is widely used in calibration laboratories, metrology institutes, research centers, pharmaceutical facilities, industrial manufacturing, and quality assurance departments.
8. Is secondary development supported?
Yes. The T1001 supports secondary software development and system integration for customized applications.

Why Choose the T1001 Multi-Channel Temperature Meter?
The T1001 combines metrology-grade accuracy, expandable multi-channel architecture, ITS-90 direct temperature conversion, and professional data acquisition capabilities in a single platform. It is an ideal solution for organizations requiring reliable, traceable, and highly accurate temperature measurement and calibration across multiple sensing points.
