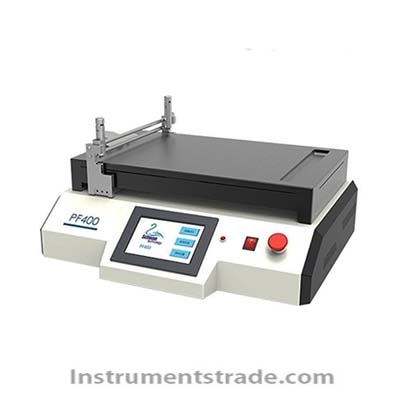

PF400 Laboratory Automatic Coating Machine Introduction: The PF400 basic coating machine is used to prepare uniform coatings, as the factors affecting the coating are shear rate and weight applied to the construction tool. The device uses a controlled wire rod or coating machine to move back and forth at a selected speed. Due to the flat adsorption of the test paper on the flat plate and the constant shear rate and force applied to the tool during coating, the reproducibility of the coating is greatly improved. At the same time, the aluminum alloy mirror polished flat panel can ensure the flatness of the panel. characteristic: 1. Hard anodized aluminum panel, more solid and wear-resistant; 2. Standard hole vacuum platform with vacuum adsorption function on the surface; 3. Two in one fixture, used separately with adjustable scraper or wire rod; 4. The coating size can be A3, A4, or user-defined, with flexible options available; 5. The glue application speed and return speed can be set arbitrarily to meet the diversity of processes; 6. Using high-precision PID temperature control, the panel temperature is controllable and adjustable, and the temperature control accuracy is high; 7. Linear temperature control heating with adjustable heating rate and 5 linear temperature control steps; 8. Can heat up to 200 ℃, with excellent insulation design and high temperature uniformity; 9. The panel and tooling are designed as heavy base devices to reduce vibration and prepare high-quality samples; 10. Silent bearings and high torque motors ensure smooth and reliable coating operation; 11. Seven inch full-color touchscreen operation with high temperature indication and emergency stop switch function; Technical parameters: Coating speed: 1-300mm/s, Speed regulation accuracy: 1mm/s Large stroke length: 420mm Vacuum adsorption area: A4/A3 area optional Vacuum panel size: 345mm * 540mm Dimensions: 630 (W) * 550 (D) 324 (H)
Introduction: The PF400 basic coating machine is used to prepare uniform coatings, as the factors affecting the coating are shear rate and weight applied to the construction tool. The device uses a controlled wire rod or coating machine to move back and forth at a selected speed. Due to the flat adsorption of the test paper on the flat plate and the constant shear rate and force applied to the tool during coating, the reproducibility of the coating is greatly improved. At the same time, the aluminum alloy mirror polished flat panel can ensure the flatness of the panel.
