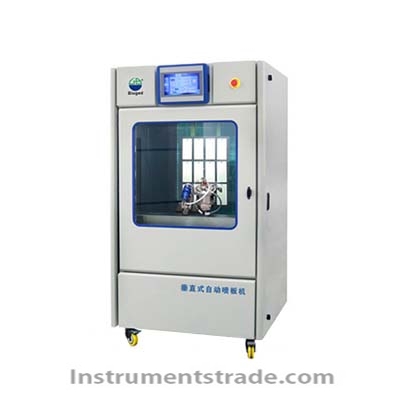

BGD-PB Vertical Fully Automatic Spray Machine Introduction: When testing coating performance, experimenters need to prepare a large number of uniformly consistent coating test panels, and the traditional manual spraying effect largely depends on the operator's experience and skills. Not only is it difficult to ensure the uniformity and consistency of the coating produced (especially when spraying large areas of test panels), but improper spraying operation can also pose certain risks to the operator's health and the environment. In response to this situation and in combination with other products in the market, Biaogeda Company has developed a fully automatic paint cabinet, which has the following advantages: characteristic: 1. Integrating automatic spraying and dry spraying filtration technology, closed spraying operation completely isolates operators from paint mist, promoting health and environmental protection; 2. Equipped with a studio air inlet filtration system to ensure that the painting process is not contaminated by external environmental factors; 3. The exhaust gas generated by spray passes through a unique dual exhaust filter device to prevent the environment from being polluted by spray painting to the greatest extent; 4. Imported Graco automatic spray gun, which can automatically adjust various spraying parameters such as spray width, atomization, feeding pressure, and ultra precise coating flow rate; 5. It can implement complex coating and spraying processes such as wet touch wet; 6. Automatic spray guns can be quickly loaded and unloaded, making it convenient for users to quickly replace different spray guns; 7. The spray gun designed with pressure feeding is more convenient to adjust its spray volume compared to gravity and suction spray guns, and is independent of the supply air pressure (atomization pressure) of the spray gun. The spray volume is more stable and accurate; 8. 10 inch touch screen control, powerful visual operation 9. Can edit and save multiple spraying programs; And pre-set intelligent spraying program, helping personnel who are not familiar with spraying operations to complete spraying with one click; 10. The machine adopts a servo control system, which can adopt various spraying methods such as horizontal, vertical, and cross spraying, and can freely set the spraying area to reduce waste and spraying time, doubling efficiency! 11. Easy to disassemble sample rack, convenient for customers to replace samples of different materials, and shorten the spraying process time. 12. The inner wall of the instrument is coated with a non stick PTFE coating for easy cleaning. 13. Disposable cups are used to hold samples to be sprayed, which are simple, convenient, free of cleaning, and cost-effective; Technical parameters: Maximum spraying area: 12 test panels with dimensions of 150mm × 75mm Rotation angle of test panel rack: 90 degrees; Adjustable spraying speed: 0-1000mm/s in the horizontal direction; Vertical direction is 0-200mm/s; The distance between the test panel and the spray gun can be set to 100mm-300mm (automatically adjusted) Atomization pressure: 0-0.7MPa; Spray pressure: 0-0.7MPa; Feeding pressure: 0-0.7MPa; Maximum compressed air pressure: 0.7MPa; Gas consumption: 18m3/h Exhaust pipe diameter: 150mm Standard GRACO automatic spray gun, type LVMP, nozzle diameter 1.0mm Dimensions: 980mm x 1000mm x 1850mm (width x depth x height); Power supply: 220V, 50/60Hz; Overall power: 1.5 KW;
Introduction: When testing coating performance, experimenters need to prepare a large number of uniformly consistent coating test panels, and the traditional manual spraying effect largely depends on the operator's experience and skills. Not only is it difficult to ensure the uniformity and consistency of the coating produced (especially when spraying large areas of test panels), but improper spraying operation can also pose certain risks to the operator's health and the environment. In response to this situation and in combination with other products in the market, Biaogeda Company has developed a fully automatic paint cabinet, which has the following advantages:
