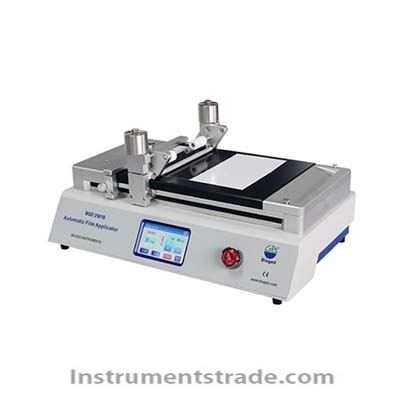

BGD 218/1S Automatic Coating Machine

Product ID：GBZzmsb001

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberBGD 218/1S

Brand NameBIAOGEDA

Payment TermsTT，PAYPAL，Alibaba.com Pay

BGD 218/1S Automatic Coating Machine
Introduction:
Automatic coating machine is used to prepare uniform and traceable coatings (manual coating is often inconsistent, especially between different operators, which makes sample comparison difficult and even unreliable), and its reproducibility is good. Because the factors that affect the coating are the shear rate and the weight added to the construction tool. This instrument uses a precisely controlled wire rod or coating machine to move back and forth at a selected speed. Due to the constant shear rate and weight applied to the construction tool during coating, the reproducibility of the coating is greatly improved.
characteristic:
1.Wide range stepless speed regulation: 5mm/s~500mm/s
2.Precise linear guide rail for smoother coating
3.Carefully designed coating bracket, with simpler and more convenient operation, and the bracket load can be increased arbitrarily to adapt to easily bent test panels
4.The coating substrate fixing clip can be adjusted in position according to the size of the test plate to adapt to substrates of different sizes
5.Randomly set the starting point of the coating to adapt to different sizes of substrates.
6.The coating distance can be set arbitrarily
7.Suitable for coating machines and rods of various shapes and sizes (total length 240mm)
8.Aluminum oxide vacuum suction platform (BGD 218/S) with high hardness and flatness (overall platform error less than 5 microns) or specially processed glass platform with high flatness (platform error less than 20 microns) for easy maintenance and cleaning (BGD 219/S)
9.Detachable coa
ting platform for easy cleaning and replacement. 10. Optimized design of vacuum suction platform with highly uniform adsorption force distribution (BGD 218/S)
11.The vacuum pump is externally mounted, avoiding the shaking caused by the traditional machine (built-in vacuum pump) structure during coating (only BGD 218/S).
Technical parameters:

model	BGD 218/1S	BGD 219/S
Substrate fixing method	by suction	clamp
Coating platform	Aluminum oxidation platform with vacuum suction holes	Glass Platform
Coating platform size	340 mm × 250 mm
Dimensions of the part with suction holes	290 mm × 190mm	---
Maximum coating stroke	320mm
Coating speed (continuously variable)	5mm/s～500mm/s
Coating bracket load	500gx2(optional 1KG,1.25KG load capacity)
total power	370W(including vacuum pump)	50W
power supply	220V；50Hz
weight	26 KG
Dimensions (excluding vacuum pump) (lengthxwidth x height, mm),	560×345×240
