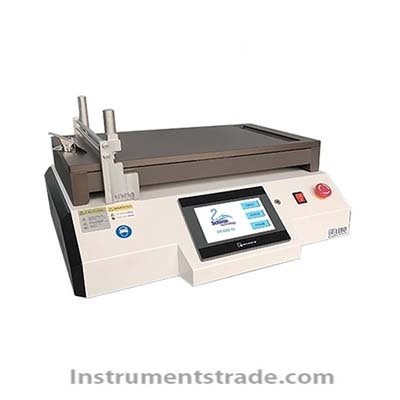

PF400-H Laboratory Coating Machine Introduction: The laboratory coating machine is used to prepare uniform coatings, as the factors affecting the coating are shear rate and weight applied to the construction tool. The device uses a controlled wire rod or coating machine to move back and forth at a selected speed. Due to the flat adsorption of the test paper on the flat plate and the constant shear rate and force applied to the tool during coating, the coating efficiency is greatly improved. characteristic: 1. Hard anodized aluminum panel, more solid and wear-resistant; 2. Standard hole vacuum platform with vacuum adsorption function on the surface; 3. Two in one fixture, used separately with adjustable scraper or wire rod; 4. The coating size can be A3, A4, or user-defined, with flexible options available; 5. The glue application speed and return speed can be set arbitrarily to meet the diversity of processes; 6. Using high-precision PID temperature control, the panel temperature is controllable and adjustable, and the temperature control accuracy is high; 7. Linear temperature control heating can be performed, and the heating rate can be set with 5 linear temperature control steps; 8. Can heat up to 200 ℃, with excellent insulation design and high temperature uniformity; 9. The panel and tooling are designed as heavy base devices to reduce vibration and prepare high-quality samples; 10. Silent bearings and high torque motors ensure smooth and reliable coating operation; 11. Seven inch full-color touchscreen operation with high temperature indication and emergency stop switch function; 12. Can be used in conjunction with a range of coating machines and wire rods on the market. Technical parameters: Rated voltage: 220 V/50 Hz Heating power: 3500 W Coating speed: 1-300mm/sec Speed regulation accuracy: 1mm/sec Heating temperature: room temperature -200 ℃ Temperature control accuracy: ± 0.5 ℃ Thermal uniformity: within ± 1% of the effective area Large stroke length: 420mm Vacuum adsorption area: A4 or A3 area optional Vacuum panel size: 345mm * 540mm Program settings: 100 sets of 5-step programs
Introduction: The laboratory coating machine is used to prepare uniform coatings, as the factors affecting the coating are shear rate and weight applied to the construction tool. The device uses a controlled wire rod or coating machine to move back and forth at a selected speed. Due to the flat adsorption of the test paper on the flat plate and the constant shear rate and force applied to the tool during coating, the coating efficiency is greatly improved.
