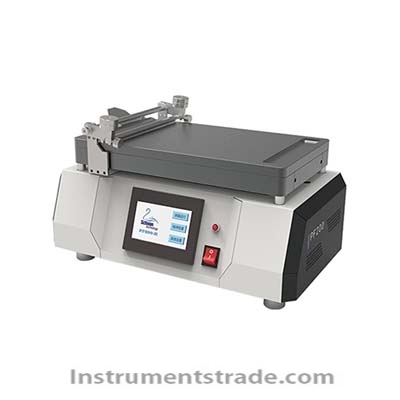

PF200-H coating machine Introduction: The laboratory coating machine is used to prepare uniform coatings, as the factors affecting the coating are shear rate and weight applied to the construction tool. The device uses a controlled wire rod or coating machine to move back and forth at a selected speed. Due to the flat adsorption of the test paper on the flat plate and the constant shear rate and force applied to the tool during coating, the reproducibility of the coating is greatly improved. At the same time, the aluminum alloy mirror polished flat panel can ensure the flatness of the panel. Technical parameters: Coating speed: 1-50mm/s Speed regulation accuracy: 1mm/s Travel length: 250mm Vacuum panel size: 380mmX210mm Vacuum adsorption area: A4 Heating temperature: room temperature~200 ℃ Thermal uniformity: ≤± 2% Dimensions: 451mm (W) x257mm (D) x 252mm (H) Weight: 27Kg Power input: AC200V~240V, single-phase, 50Hz, 2.0KW Vacuum input requirement: 0.06-0.09Mpa, with a vacuum flow rate of at least 15L/Min Vacuum interface: The outer diameter of the outlet on the back plate of the equipment is 6mm
Introduction: The laboratory coating machine is used to prepare uniform coatings, as the factors affecting the coating are shear rate and weight applied to the construction tool. The device uses a controlled wire rod or coating machine to move back and forth at a selected speed. Due to the flat adsorption of the test paper on the flat plate and the constant shear rate and force applied to the tool during coating, the reproducibility of the coating is greatly improved. At the same time, the aluminum alloy mirror polished flat panel can ensure the flatness of the panel.
