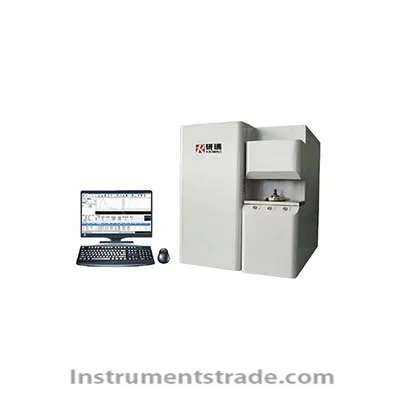

ON-330 oxygen nitrogen analyzer

Product ID:FYydq006

Price: US$35,000.00 ~ US$59,000.00 PDF Format
Supply Ability:50SETS/MON
Port:SHENZHEN
  • Product Introduction
  • Other information
  • Model NumberON-330
    Brand NameCQYANRUI
    Payment TermsTT,PAYPAL,Alibaba.com Pay
    ON-430 Oxygen Nitrogen Analyzer

    Product Introduction
    The ON-430 Oxygen Nitrogen Analyzer is a high-precision analytical instrument designed for the quantitative determination of oxygen and nitrogen in metals and inorganic materials. It combines an integrated modular design with a reliable pulse electrode furnace, durable power supply, stable electronic system, well-designed gas path, and a highly sensitive detection system.
    The ON-430 uses the inert gas fusion method, infrared absorption for oxygen determination, and thermal conductivity detection for nitrogen determination. It is suitable for analyzing a wide range of metallic and non-metallic inorganic materials, including steel, iron, copper, zirconium, titanium, tantalum, niobium, rare earth materials, ceramics, and cemented carbides.
    Based on the Windows 10 operating system, its analytical software provides a practical and user-friendly interface for efficient laboratory operation and data analysis.




     Key Features
    • Integrated and modular instrument design for convenient operation and maintenance.
    •  High-precision and reliable components for stable long-term analysis.
    •  Reliable pulse electrode furnace with a maximum temperature above 3000°C.
    •  High-power electrode furnace capable of delivering up to 1500 A current.
    •  Stable and durable power supply and electronic control system.
    •  Optimized gas path with good gas tightness.
    •  High-sensitivity, high-precision oxygen and nitrogen detection system.
    •  Infrared absorption detection for oxygen analysis.
    •  Thermal conductivity detection (TCD) for nitrogen analysis.
    •  Windows 10-based analytical software with a simple and practical interface.
    •  Suitable for a wide range of metals, ceramics, semiconductor materials, and other inorganic materials.




    Working Principle
    The ON-430 Oxygen Nitrogen Analyzer uses the inert gas fusion method to release oxygen and nitrogen from the sample.
    During analysis, the sample is placed in the pulse electrode furnace and heated to a high temperature under an inert gas atmosphere. The oxygen in the sample is converted into gaseous oxides, while nitrogen is released as nitrogen gas.
    For oxygen analysis, the generated gas is processed and measured using the infrared absorption method. The infrared absorption signal is proportional to the oxygen concentration in the sample.
    For nitrogen analysis, the released nitrogen is measured using thermal conductivity detection. The difference in thermal conductivity between nitrogen and the carrier gas is converted into a quantitative nitrogen concentration.
    This combined analytical principle enables rapid and accurate oxygen and nitrogen analysis in a wide range of materials.




     Technical Specifications
    Parameter Specification
    Model ON-430
    Analytical Elements Oxygen (O), Nitrogen (N)
    Analytical Principle Inert gas fusion; infrared absorption for O; thermal conductivity detection for N
    Applicable Materials Ferrous metals, non-ferrous metals, ceramics, superconducting materials, semiconductor materials and other inorganic materials
    Typical Materials Steel, iron, copper, zirconium, titanium, tantalum, niobium, rare earth materials, ceramics, cemented carbides
    Analysis Time 120–180 s
    Oxygen Range 0.00001%–3.0%
    Nitrogen Range 0.00001%–3.0%
    Other Analytical Ranges Optional
    Minimum Reading 0.000001%
    Oxygen Precision 0.0001% or RSD ≤1.0%, either criterion
    Nitrogen Precision 0.0001% or RSD ≤1.0%, either criterion
    Balance Accuracy 0.0001 g
    Electrode Furnace Power ≤8 kW
    Electrode Furnace Current ≤1500 A
    Maximum Furnace Temperature >3000°C
    Chemical Reagents Magnesium perchlorate, soda lime, copper oxide
    Software Windows 10-based analytical software
    Dimensions W700 × D770 × H820 mm
    Weight Approx. 160 kg



    Applications
    The ON-430 Oxygen Nitrogen Analyzer is suitable for oxygen and nitrogen analysis in:
    •  Steel and iron analysis
    •  Non-ferrous metals and alloys
    •  Copper, titanium, zirconium, tantalum and niobium materials
    •  Rare earth materials
    •  Ceramic materials
    •  Cemented carbide materials
    •  Semiconductor materials
    •  Superconducting materials
    •  Metallurgical quality control
    •  Materials research and development
    •  University and research laboratories
    •  Industrial quality inspection
    It is particularly suitable for laboratories requiring reliable trace oxygen and nitrogen analysis in metals and inorganic materials.




    ON-430 vs. Conventional Oxygen/Nitrogen Analyzers
    Feature ON-430 Oxygen Nitrogen Analyzer Conventional O/N Analyzer
    Oxygen Detection Infrared absorption Depends on configuration
    Nitrogen Detection Thermal conductivity Depends on configuration
    Sample Fusion High-temperature inert gas fusion May vary
    Furnace Temperature >3000°C Depends on model
    Analysis Time 120–180 s Typically varies
    O/N Detection Range 0.00001%–3.0% Depends on model
    Furnace Current ≤1500 A Depends on configuration
    Applicable Materials Metals, ceramics, semiconductors and inorganic materials Usually more application-specific
    Software Windows 10-based Depends on manufacturer
    Instrument Design Integrated and modular Varies



    FAQ
    1. What does the ON-430 Oxygen Nitrogen Analyzer measure?
    The ON-430 measures oxygen and nitrogen concentrations in metals, ceramics, semiconductor materials, and other inorganic materials.
    2. What analytical method does the ON-430 use?
    It uses the inert gas fusion method, with infrared absorption for oxygen and thermal conductivity detection for nitrogen.
    3. What materials can be analyzed?
    The analyzer can be used for steel, iron, copper, zirconium, titanium, tantalum, niobium, rare earth materials, ceramics, cemented carbides, semiconductor materials, and other inorganic materials.
    4. What is the oxygen and nitrogen analysis range?
    The standard range for both oxygen and nitrogen is 0.00001% to 3.0%, with other analytical ranges available as options.
    5. How long does one analysis take?
    The typical analysis time is approximately 120–180 seconds, depending on the sample and analytical conditions.
    6. What is the maximum temperature of the electrode furnace?
    The pulse electrode furnace can reach a maximum temperature of more than 3000°C, enabling the analysis of high-melting-point materials.
    7. What is the minimum reading of the ON-430?
    The minimum reading is 0.000001%, supporting high-resolution oxygen and nitrogen measurement.
    8. Is the ON-430 suitable for research laboratories?
    Yes. Its high-temperature fusion system, sensitive detection technology, stable gas path, and Windows 10 analytical software make it suitable for materials research, metallurgy, industrial quality control, and scientific laboratories.
  • FAQ
    1. What does the ON-430 Oxygen Nitrogen Analyzer measure?
    The ON-430 measures oxygen and nitrogen concentrations in metals, ceramics, semiconductor materials, and other inorganic materials.
    2. What analytical method does the ON-430 use?
    It uses the inert gas fusion method, with infrared absorption for oxygen and thermal conductivity detection for nitrogen.
    3. What materials can be analyzed?
    The analyzer can be used for steel, iron, copper, zirconium, titanium, tantalum, niobium, rare earth materials, ceramics, cemented carbides, semiconductor materials, and other inorganic materials.
    4. What is the oxygen and nitrogen analysis range?
    The standard range for both oxygen and nitrogen is 0.00001% to 3.0%, with other analytical ranges available as options.
    5. How long does one analysis take?
    The typical analysis time is approximately 120–180 seconds, depending on the sample and analytical conditions.
    6. What is the maximum temperature of the electrode furnace?
    The pulse electrode furnace can reach a maximum temperature of more than 3000°C, enabling the analysis of high-melting-point materials.
    7. What is the minimum reading of the ON-430?
    The minimum reading is 0.000001%, supporting high-resolution oxygen and nitrogen measurement.
    8. Is the ON-430 suitable for research laboratories?
    Yes. Its high-temperature fusion system, sensitive detection technology, stable gas path, and Windows 10 analytical software make it suitable for materials research, metallurgy, industrial quality control, and scientific laboratories.
