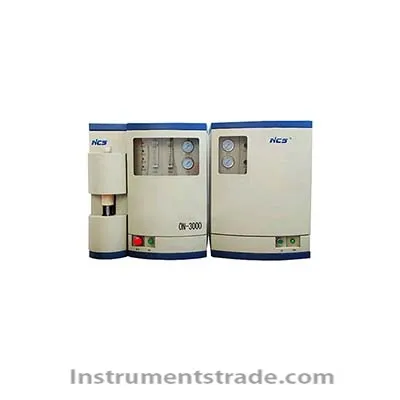

ON - 3000 nitrogen oxygen analyzer Brief introduction:
Apply to metallurgy, machinery, scientific research, chemical industry and commodity inspection, inspection industries such as black, non-ferrous, ceramics, rare earth and magnetic material of accurate determination of the carbon content of sulfur.
Features:
1. The international advanced solid infrared testing parts
2. Automatic control of heating power flow control technology
3. Special computer software
4. The first-class linearization treatment effect
5. The international advanced level of test precision
6. The high reliability of circuits and components. Rich self-diagnosis function
7. Save load qigong can automatically Technical parameters:
Scope: 1. Analysis of oxygen: 0.0002% - 2%
Nitrogen: 0.0002%, 2% (1 g sample, change can be expanded to the sample weight measurement range)
2. The analysis accuracy: 0.0001% (low content) or 1% (high content)
3. The acuity: 0.00001%
4. Analysis time: 3 minutes
5. Test sensor: oxygen with solid Co2 infrared detector, nitrogen with high precision thermal conductivity detector
6. Sample weighing: 0.2 1 g (0.5 g), according to the sample content change according to quantity
7. Pulse heating furnace: maximum current 1500 a, 8 kva maximum power, the highest temperature of 300000 c.
8. Correction: fast calibration; Conventional calibration two ways
9. Power supply: 220 vac plus or minus 10%, 50/60 hz, 10 kw maximum power
10. Size: Instrument box 650 * 550 * 645 mm (length x width x height); Vice is 650 * 450 * 650 mm (length x width x height)
The ON-3000 Oxygen Nitrogen Analyzer is suitable for the accurate determination of carbon and sulfur content in black, colored, ceramic, rare earth and magnetic materials in various industries such as metallurgy, machinery, scientific research, chemical industry and commercial inspection.
