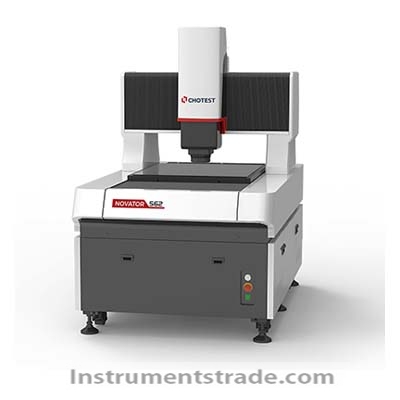

Novator series video measuring machine Introduction: The Novator series is an advanced fully automatic image measuring instrument that utilizes a marble-based machine frame and a precise servo control system to achieve high-precision motion measurement. It fully leverages the high-precision advantage of the optical electric zoom lens, combining traditional image measurement with laser scanning technology to achieve 2.5D and fully functional 3D composite measurement. Novator also supports strobe lighting and flying capture functions for high-speed measurement, significantly enhancing measurement efficiency. With independent lifting and replaceable RGB light sources, it can adapt to more complex workpiece surfaces. The innovative support of various new measurement features and functions endows Novator with powerful measurement capabilities. Novator can achieve precise measurements of surface dimensions, contours, angles and positions, geometric tolerances, 3D spatial morphology, and dimensional structures of various complex parts. Novator can be used in fields such as machinery, electronics, molds, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, terminals, mobile phones, home appliances, printed circuit boards, medical devices, clocks and watches, cutting tools, metrology and testing. Features: Stable mobile platform, high measurement accuracy 1. Precision marble machine platform, with good stability and high precision. 2. Precision linear guide rails and servo control system, ensuring ultra-low decibel silent movement. 3. Three-axis fully automatic programmable detection, enabling batch detection of complex features. Laser scanning imaging, 3D composite measurement 1. Support point laser contour scanning measurement for contour measurement in the height direction. 2. Support line laser 3D scanning imaging, enabling 3D scanning imaging and spatial measurement. 3. The VisionX measurement software supports multiple contour measurements and 3D spatial measurements, seamlessly integrating 2D/3D hybrid measurements. Strobe lighting source, high-speed hardware flying shot 1. Equipped with a strobe lighting source, supporting both strobe and normal modes. 2. Support for flying-shot mode measurement, with measurement efficiency increased by 5 to 10 times. 3. Integrate the splicing measurement function of the Zhongtu flash tester to leverage its comprehensive advantages. Replaceable RGB surface light, independent adjustable surface light 1. Replaceable RGB and white light sources, suitable for a variety of complex color and material surfaces. 2. The surface light can be independently adjusted up and down, allowing for better observation of the sample surface. 3. Supports segmented programming control of surface light, transmitted light, and coaxial light for six rings and eight zones. Automatic measurement, faster batch processing 1. The program matches the workpiece coordinate system and automatically executes the measurement process. 2. Support the import of CAD drawings and Gerber drawings, with coordinate system matching for measurement. 3. In the CNC fixed coordinate system mode, batch measurements can be quickly and accurately performed. Easy to operate, hassle-free 1. Equipped with a large-format navigation camera, it can quickly achieve workpiece positioning. 2. It features a lens anti-collision function, ensuring ease and peace of mind. 3. The integrated operation interface allows anyone to easily set up and measure.
