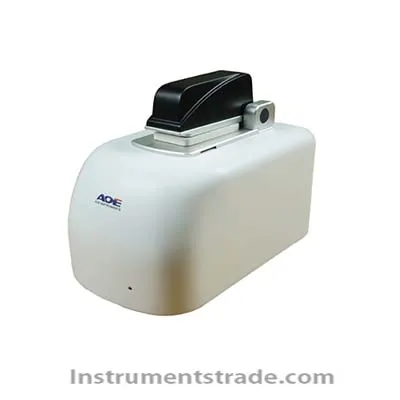

ND500 ultra-micro spectrophotometer Feature
1. High sensitivity: The device adopts the latest 2048 linear CCD detector with higher sensitivity and accuracy.
2. Software upgrade: support U disk one-button upgrade, free for life, no charge
3. High repeatability: The advanced stepping motor combines the unique double-track precise positioning technology with an optical path accuracy of 0.001mm, achieving high repeatability of absorbance detection.
4. Fast and convenient: powerful optical path auto-adjustment technology, which can measure without measuring the high-concentration sample, complete the test in a few seconds, and the sample base is wiped and used.
5. Display: Support wireless WIFI connection, connect high-resolution tablet, realize local one-finger control, save space.
6. Mass storage: Depending on the computer and tablet storage, you don't have to worry about running out of memory.
7. Full-spectrum scanning: The wavelength range is 185-910nm, and the test range is more extensive. It can detect more sample types and adapt to diverse testing requirements.
8. Light source: long life flashing xenon lamp
9. Small sample size: 0.5μl minimum detection volume, saving precious samples; full-spectrum detection shows immediate detection results within seconds.
10. With dual detection mode (pedestal detection and cuvette detection)
Technical Parameters
1. Wavelength range: 185-910nm
2. Light source: flashing xenon lamp
3. Detector: 2048 pixel linear CCD array
4. Minimum sample size: 0.5ul
5. Spectral resolution: ≤1.8 (FWHM atHg253.7nm)
6. Absorbance accuracy: 0.002Abs (1mm optical path)
7. Interface: USB, support wifi connection and U disk upgrade
8. The sample concentration is at least 2 ng/ul dsDNA, and the maximum concentration is 15000 ng/ul ds DNA.
9. Detection time: 0.5 seconds
10. Data interface: USB
11. Wireless connection: WIFI
12. Software upgrade: U disk one-click upgrade
The ND500 ultra-micro spectrophotometer uses a new generation of 2048 linear CCD detector, which has higher sensitivity and accuracy. The ND500 ultra-micro spectrophotometer uses an advanced stepping motor combined with a unique dual trajectory precise positioning technology. The optical path accuracy can reach 0.001mm, achieving high repeatability of absorbance detection.
