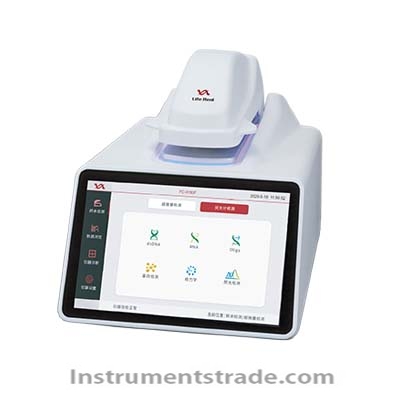

NanoReady Touch Ultra-Micro UV-Vis Spectrophotometer

Product ID：FGfg049

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberNanoReady

Brand NameHZSUIZHEN

Payment TermsTT，PAYPAL，Alibaba.com Pay

NanoReady Touch Ultra-Micro UV-Vis Spectrophotometer
Product Overview
The NanoReady Touch Ultra-Micro UV-Vis Spectrophotometer is a compact micro-volume UV-Vis spectrophotometer designed for rapid and accurate concentration and absorbance measurements of nucleic acids, proteins, bacterial and cell culture samples, as well as unknown samples.
The instrument features a built-in 7-inch high-resolution color touchscreen and an Android operating system, allowing complete operation without an external computer. Measurement results are displayed in real time, historical data can be stored internally, and test data can be exported to a computer.
With an integrated and compact design, NanoReady Touch is well suited for space-limited laboratories and mobile testing applications.

Key Features
• 7-inch Color Touchscreen: Built-in high-resolution color touchscreen displays comprehensive measurement information and supports complete instrument operation directly on the screen.
• Wide Detection Range: The minimum optical path length is only 0.03 mm. Combined with the latest-generation spectrometer, the instrument can measure dsDNA concentrations from as low as 0.2 ng/μL up to 27,500 ng/μL.
• Multiple Configurations: Different configurations are available, including full-wavelength or fixed-wavelength models and micro-volume or cuvette measurement configurations.
• Heated and Stirred Cuvette Compartment: The cuvette compartment can be equipped with heating and stirring functions for applications requiring controlled sample conditions.
• Customizable Wavelength: Fixed-wavelength models can be customized with different wavelength configurations according to specific testing requirements.
• Visual Status Indicator: An LED light strip around the measurement platform indicates different operating states through flashing patterns, making the measurement process easier to monitor.
• Android Operating System: Built-in operating system and analytical software eliminate the need for an external computer. The graphical touchscreen interface provides intuitive operation and improves workflow efficiency.
• Stable and Reliable Measurements: Designed to provide stable and accurate measurements across a wide concentration range, including both low-concentration and high-concentration nucleic acid samples.

Working Principle
The NanoReady Touch uses UV-Vis spectrophotometry to determine sample concentration and absorbance by measuring the interaction between the sample and ultraviolet or visible light.
For micro-volume measurements, a small sample volume is placed on the measurement pedestal. The instrument automatically forms a short optical path through the sample. The UV-Vis spectrometer detects the transmitted light intensity at the selected wavelength or across the full wavelength range.
Based on the measured absorbance, the system can calculate sample concentration and provide relevant analytical results. The ultra-short 0.03 mm optical path extends the measurable concentration range while reducing the need for sample dilution.

Technical Specifications

Item	Specification
Product Type	Ultra-Micro UV-Vis Spectrophotometer
Minimum Optical Path Length	0.03 mm
dsDNA Detection Range	0.2–27,500 ng/μL
Display	7-inch High-Resolution Color Touchscreen
Operating System	Android
Measurement Modes	Full-Wavelength / Fixed-Wavelength
Sample Measurement	Micro-Volume / Cuvette
Cuvette Function	Heating and Stirring Available
Wavelength	Customizable for Fixed-Wavelength Models
Data Management	Historical Data Storage and Computer Export
Operation	Stand-Alone Touchscreen Operation

Applications
The NanoReady Touch Ultra-Micro UV-Vis Spectrophotometer is suitable for:
• Nucleic acid concentration measurement
• DNA and RNA analysis
• Protein concentration measurement
• Bacterial and cell culture analysis
• Sample absorbance measurement
• Unknown sample absorbance testing
• Molecular biology laboratories
• Biotechnology research
• Pharmaceutical research
• Life science laboratories

Application Scenarios
• Molecular Biology: Rapid determination of DNA and RNA concentration and purity.
• Protein Research: Measurement of protein concentration and absorbance.
• Cell Culture: Analysis of bacterial and cell culture samples.
• Research Laboratories: Routine UV-Vis absorbance measurements for various experimental samples.
• Space-Limited Laboratories: Compact integrated design is suitable for laboratories with limited bench space.
• Mobile Testing: Lightweight and integrated configuration can be used for mobile or vehicle-based testing applications.

NanoReady Touch vs. Conventional UV-Vis Spectrophotometers

Feature	NanoReady Touch	Conventional UV-Vis Spectrophotometer
Sample Volume	Ultra-micro volume	Usually larger volume
Optical Path	As short as 0.03 mm	Generally longer
Computer Requirement	Not required	Commonly required
Display	Built-in 7-inch touchscreen	Usually external computer/display
Operation	Stand-alone touchscreen	Computer-based operation
Concentration Range	Up to 27,500 ng/μL dsDNA	Depends on optical path and configuration
Cuvette Measurement	Optional configuration	Common
Space Requirement	Compact	Generally larger
Mobile Use	Suitable	Less convenient

FAQ
Q1: What is the NanoReady Touch Ultra-Micro UV-Vis Spectrophotometer used for?
It is primarily used for rapid concentration and absorbance measurements of nucleic acids, proteins, bacterial and cell culture samples, and unknown samples.
Q2: Does the NanoReady Touch require a computer?
No. The instrument integrates an Android operating system, analytical software and a 7-inch touchscreen, allowing measurements to be completed directly on the instrument.
Q3: What is the minimum optical path length?
The minimum optical path length is 0.03 mm, which enables high-concentration sample measurement while reducing the need for sample dilution.
Q4: What is the dsDNA detection range?
The dsDNA detection range can reach 0.2–27,500 ng/μL, depending on the instrument configuration and measurement conditions.
Q5: Can the wavelength be customized?
Yes. Fixed-wavelength models can be customized with different wavelength configurations according to application requirements.
Q6: Can the instrument measure samples using cuvettes?
Yes. Cuvette measurement configurations are available, and the cuvette compartment can provide heating and stirring functions.
Q7: Can measurement data be exported?
Yes. Historical measurement data can be stored in the instrument and exported to a computer.
Q8: Is NanoReady Touch suitable for small laboratories?
Yes. Its integrated and compact design occupies less laboratory space and is particularly suitable for space-constrained laboratories and mobile testing applications.
