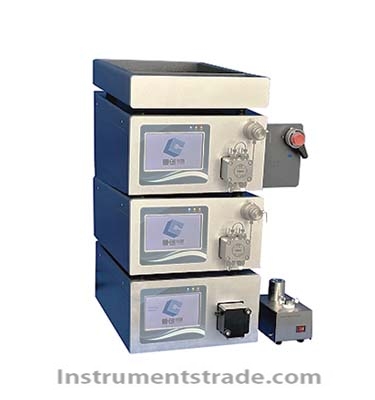

LC-3000 liquid chromatograph

Product ID：FSye033

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

LC-3000 liquid chromatograph
Introduction:
The entire LC-3000 liquid chromatography system consists of P3000 high-pressure pump, UV3000 detector, injection valve, solvent tray, chromatographic column, return control working software, etc.; Installation, debugging and use are very simple.
P3000 high-pressure infusion pump is a high-precision infusion pump system based on CPLD technology and controlled by single chip microcomputer. The all-digital frequency generation system, the advanced motor drive system and the friendly man-machine display interface make the operation very convenient. The advanced pump head and single-item valve design ideas integrate the most advanced experience in the world today, making the system operable under various conditions. The accuracy and repeatability of infusion can be guaranteed under all conditions.
UV3000 is a spectroscopic detector that can match any infusion pump and is suitable for a wide range of applications in chemical analysis, pesticides, pharmaceuticals, chemicals and other fields. It adopts the all-digital and highly integrated design concept to greatly reduce the noise of the instrument; Based on digital signal transmission and processing, the signal of this detector can be directly input to the serial port of the computer for acquisition, completely getting rid of the data acquisition card that traditional instruments must use!
Technical parameters:
P3000 high pressure infusion pump:

Mode of infusion	Double plunger reciprocating pump, one main suction plunger. One is the auxiliary plunger
Pump head	Analytical type: 10ml stainless steel/PEEK pump head/semi-preparative 50ml stainless steel/PEEK pump head
Maximum operating pressure	Analytical type: 42MPa stainless steel pump head/30MPa PEEK pump head Semi-preparation type: 30MPa stainless steel pump head/20MPa PEEK pump head
Flow Range	Analytical: 0.001-9.999 ml Semi-preparative: 0.01-49.99 ml
Flow accuracy	RSD ≤ 0.3% (1ml/min)
Flow repeatability	RSD ≤ 0.1% (1ml/min)
Display screen	320 * 240 dot matrix large screen LCD display with adjustable blue backlight.
System Protection	Slow start, stop below minimum pressure 2ML. The maximum and minimum pressures are adjustable, and user data is automatically stored.
System Connection	1/16 "line connection
Control system	Independent mode: Full keyboard setting parameters. When working in high-pressure gradient mode, one of the pumps is the main pump, which controls other high-pressure infusion pumps of the same model, and verifies the displayed gradient mode through the gradient curve on the display. Serial port mode: Through RS232 port, control the high-pressure infusion pump.
Note: Dimensions: 398 * 149 * 267mm Weight: 10 kg Power supply: 220V ± 10%, 50HZ, 40W

UV3000 detector

Wavelength range/accuracy	190-700 nm ± 2 nm
Wavelength repeatability	0.4 nm
Light source	Deuterium lamp (standard); Tungsten lamp (replaceable)
Light source control	Light selection, light on/off setting available
Scanning function	Stay scanning, scanning is programmable, that is, the starting point and end point of scanning can be set, and the scanning step size can be set.
Detection range	0-2AU
Baseline noise	1.5 * 10-5AU/h dynamic: flow rate 1ml/min methanol/water = 80/20, wavelength 254nm
Baseline drift	4 * 10-4AU/h dynamic: flow rate 1ml/min methanol/water = 80/20, wavelength 254nm
Time constant	0.1/0.2/0.5/1/2/5/10S
Analog signal	± 0. 1 V ± 1. 0 V ± 10 V
Integral output	16 levels adjustable
Automatic zero adjustment	Full scale
control	Independent mode: Full keyboard setting parameters. Serial port mode: Through RS232 port, control the high-pressure infusion pump.
Display screen	320 * 240 dot matrix large screen LCD display with adjustable blue backlight.
GLP	Total lighting time, number of lighting times. Replace the number of lamps and product series number, etc.
Note: Dimensions: 398 * 149 * 267mm Weight: 10 kg Power supply: 220V ± 10%, 50HZ, 40W

Introduction:
The entire LC-3000 liquid chromatography system consists of P3000 high-pressure pump, UV3000 detector, injection valve, solvent tray, chromatographic column, return control working software, etc.; Installation, debugging and use are very simple.
P3000 high-pressure infusion pump is a high-precision infusion pump system based on CPLD technology and controlled by single chip microcomputer. The all-digital frequency generation system, the advanced motor drive system and the friendly man-machine display interface make the operation very convenient. The advanced pump head and single-item valve design ideas integrate the most advanced experience in the world today, making the system operable under various conditions. The accuracy and repeatability of infusion can be guaranteed under all conditions.
UV3000 is a spectroscopic detector that can match any infusion pump and is suitable for a wide range of applications in chemical analysis, pesticides, pharmaceuticals, chemicals and other fields. It adopts the all-digital and highly integrated design concept to greatly reduce the noise of the instrument; Based on digital signal transmission and processing, the signal of this detector can be directly input to the serial port of the computer for acquisition, completely getting rid of the data acquisition card that traditional instruments must use!
