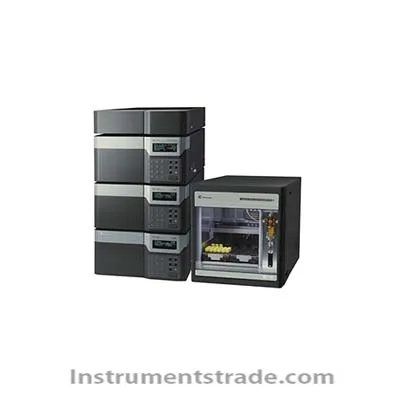

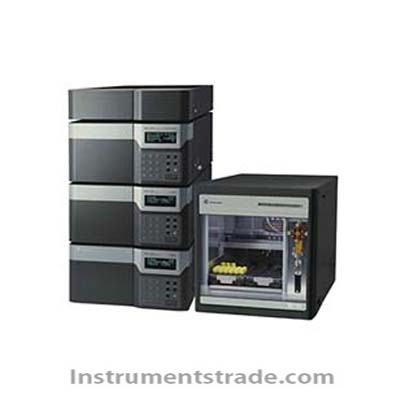

EX1700 Ultra high performance liquid chromatography

Product ID:FSye004

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberEX1700
    Brand NameYIMA
    Payment TermsT/T, paypal
    Introduction:
    EX1700 series is an ultra-high pressure liquid chromatograph, and its performance in all aspects has completely surpassed the current HPLC system. With the higher requirements for analysis and detection in the future, ultra-high pressure liquid chromatography will be an inevitable part of HPLC development trend.
    Main parameters

    EX1700 Transfusion unit
    liquid delivery system Two parallel plunger reciprocating infusion, automatic pulse suppression system
    Flow rate range 0.001~5.000mL/min
    Max output pressure 60MPa(0.001~2.5 mL/min)
    flow accuracy <±1%(0.5~2.5mL/min)
    The velocity precision RSD<0.07%(1 mL/min)
    Size /weight 300(w)×450(D)×150(H),about 18kg









    EX1700 gradient system
    mixing principle With different velocity gradient ratio of double pump control
    The number of mobile phase 2~4(Equipped with solvent switching valve)
    Accuracy of hybrid +2%
    EX1700 UV-detector
      EX1700UV EX1700UV-VIS
    optical system  Double beam system
    light source  deuterium lamp The deuterium lamp + tungsten lamp
    Wavelength range  190~700nm 190~900nm
    wavelength accuracy <±1nm
    spectral bandwidth 6nm
    Noise 0.6×10-5AU(254nm)
    drifting 1×10-4AU(254nm)
    flow cell 3.5ul(6mmoptical path)
    response time 0.1,0.2,0.5 ,1,2 Five grade adjustable
    Wavelength time application Any wavelength changes in time
    GLP function  Lamp use time,Deuterium lamp, tungsten lamp energy record
    Size /weight 300(w)×450(D)×150(H),  about 15kg

    EX1700 column oven
      EX1700COI EX1700CO
    Temperature control principle Air circulation heating
    Set temperature range 10~85 4~85
    Temp Range Above room temperature 10~85 Below room temperature 10~85
    Precision of
    temperature control
    +0.1
    Install the
    chromatographic column
    2pieces
    Size /weight 300(w)×450(D)×150(H), about 12kg 140(w)×450(D)×450(H), about 17kg



  • Introduction:
    EX1700 series is an ultra-high pressure liquid chromatograph, and its performance in all aspects has completely surpassed the current HPLC system. With the higher requirements for analysis and detection in the future, ultra-high pressure liquid chromatography will be an inevitable part of HPLC development trend.
