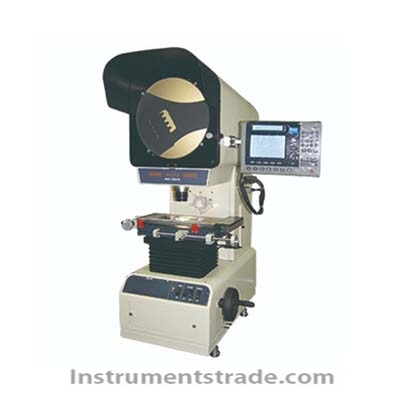

JT300φ300 digital projector

Product ID：CLCDtyy038

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberJT300φ300

Brand NameGYXINTIAN

Payment TermsTT，PAYPAL，Alibaba.com Pay

JT300φ300 digital projector
Introduction:
A projector is a metrological instrument that utilizes optical principles to magnify and image the workpiece placed on a workbench through an objective lens with accurate magnification onto a projection screen. Inspectors perform various measurements based on the magnified image of the workpiece on the projection screen. Projectors are precision instruments that integrate optics, mechanics, electronics, and computing, and have a wide range of applications.
Features:
1. With a circular arc curve design, the instrument is aesthetically pleasing and easy to use.
2. The lifting system utilizes linear guide rails and interference-free nuts, ensuring a more comfortable and stable lifting transmission.
3. The reflector adopts professional coating technology, providing better dustproof effect.
4. The brightness of transmitted illumination can be adjusted to two levels, high and low, to accommodate the measurement needs of different workpieces.
5. High-brightness, long-lasting tungsten halogen lamps are used to meet the needs of prolonged use.
6. The optical system boasts excellent quality, with clear imaging from the objective lens and accurate magnification.
7. The axial fan features bidirectional heat dissipation, providing superior cooling capacity.
Technical Specifications:
projection screen
Projection screen size: φ300mm
Projection screen rotation range: 0°~360°
Rotation angle display equivalent: 1′
Rotation angle accuracy: 6′
Workbench:

type	small	large-scale
Countertop size (mm)	350×202	400×225
Measuring range (mm)	150×100	200×100
Focusing range (mm)	0～90
Resolution (mm)	0.001
Instrument accuracy	3+L/75μm (where L is the measured length, unit: mm)
Workbench load capacity (kg)	5

Objective lens

Objective lens magnification	10×	20×	50×	100×
Objective lens object-side field of view	φ30mm	φ15mm	φ6mm	φ3mm
Working distance of objective lens	75mm	69 mm	44 mm	26 mm

Magnification error: 0.08%
Rated voltage: AC 220V 50Hz
lighting source
Transmission lighting: 12V 100W halogen tungsten lamp
Reflective lighting: 24V 150W halogen tungsten lamp
The operating environment
is at a room temperature of 20℃±5℃ and a relative humidity of 40% - 70%RH.
The dimensions of the instrument (mm) are: length 380 × width 694 × height 1058.
The instrument weighs 180kg
