JT27 φ350 digital projector

Product ID：CLCDtyy031

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberJT27 φ350

Brand NameGYXINTIAN

Payment TermsTT，PAYPAL，Alibaba.com Pay

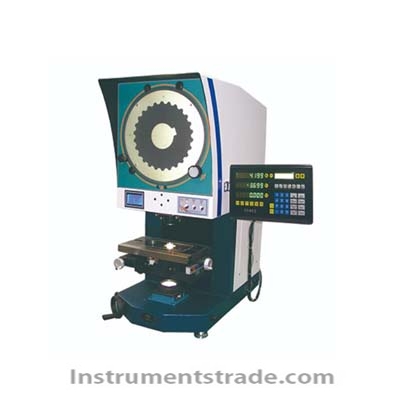

JT27 φ350 digital projector
Introduction:
The JT27 φ350 digital projector is a metrological instrument that utilizes optical principles to magnify and image the workpiece placed on the workbench through an objective lens with accurate magnification onto a projection screen. Inspectors conduct various measurements based on the magnified image of the workpiece on the projection screen. The projector is a precision instrument integrating optics, mechanics, electronics, and computing, with a wide range of applications.
Features:
1. The instrument boasts an aesthetic appearance, compact structure, and easy operation. 2.
It provides real-time display of the temperature of the transmitted light, reflected light, and workbench, and automatically alarms when the temperature exceeds the safe limit.
3. It offers high measurement accuracy, with the workbench made of aviation-grade cast aluminum for lightweight construction.
4. The optical system is of excellent quality, featuring clear objective imaging and accurate magnification.
5. The reflected illumination utilizes fiber-optic transmission, offering compact size, high brightness, and ease of use. 6.
The transmitted illumination brightness is adjustable between high and low levels, catering to the measurement requirements of different workpieces.
Technical Specifications
1. Projection screen
Projection screen size: φ350mm
Projection screen rotation range: 0°~360°
Rotation angle display equivalent: 1′
Rotation angle accuracy: 4′
2. Workbench

Table size (mm)	326×150
Measuring range (mm)	200×80
Focusing range (mm)	0～100
Resolution (mm)	0.001
Instrument accuracy	2.5+L/80μm (where L is the measured length, unit: mm)
Workbench load capacity (kg)	5

3. Objective lens

Objective lens magnification	10×	20×	50×	100×
Objective lens field of view in object space	φ35mm	φ17.5mm	φ7mm	φ3.5mm
Working distance of objective lens	88mm	81mm	54mm	45mm

4. Magnification error: 0.08%
5. Illumination source:
Transmitted illumination: 24V 150W halogen tungsten lamp;
Reflected illumination: 24V 150W halogen tungsten lamp (with reflective cup)
6. Environmental requirements:
room temperature of 20℃±5℃, relative humidity of 40%－70％RH.
7. Overall dimensions of the instrument (mm): length 775×width 440×height 980.
8. Instrument mass: 150kg

JT27 φ350 digital projector
Introduction:
The JT27 φ350 digital projector is a metrological instrument that utilizes optical principles to magnify and image the workpiece placed on the workbench through an objective lens with accurate magnification onto a projection screen. Inspectors conduct various measurements based on the magnified image of the workpiece on the projection screen. The projector is a precision instrument integrating optics, mechanics, electronics, and computing, with a wide range of applications.
