JT24 φ300 digital projector

Product ID：CLCDtyy030

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberJT24 φ300

Brand NameGYXINTIAN

Payment TermsTT，PAYPAL，Alibaba.com Pay

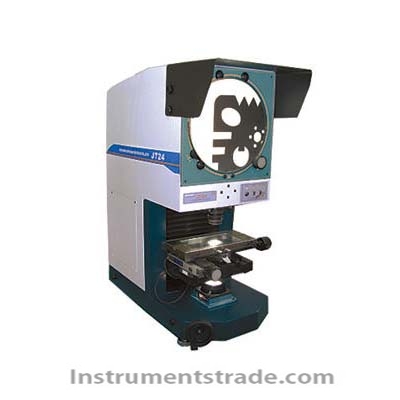

JT24 φ300 digital projector
Introduction:
The JT24 φ300 digital projector is a metrological instrument that utilizes optical principles to magnify and image the workpiece placed on the workbench through an objective lens with accurate magnification onto a projection screen. The inspector performs various measurements based on the magnified image of the workpiece on the projection screen. The projector is a precision instrument integrating optics, mechanics, electronics, and computing, with a wide range of applications.
Features:
1. The instrument boasts an aesthetically pleasing appearance, compact structure, and easy operation.
2. The light source utilizes high-brightness, long-lasting tungsten halogen lamps, ensuring uniform illumination.
3. With an aesthetically pleasing design, it offers high measurement accuracy. The workbench is made of aviation-grade cast aluminum, ensuring lightweight.
4. The optical system is of excellent quality, with clear objective lens imaging and accurate magnification.
5. Reflective illumination utilizes fiber-optic transmission, offering compact size, high brightness, and ease of use. 6.
Transmitted illumination features adjustable brightness levels, catering to the measurement requirements of different workpieces.
Technical Specifications:
1. Projection screen
Projection screen size: φ300mm
Projection screen rotation range: 0°~360°
Rotation angle display equivalent: 1′
Rotation angle accuracy: 6′
2. Workbench

Table size (mm)	326×150
Measuring range (mm)	200×80
Focusing range (mm)	0～100
Resolution (mm)	0.001
Instrument accuracy	2.5+L/80μm (where L is the measured length, unit: mm)
Workbench load capacity (kg)	5

3. Objective lens

Objective magnification	10×	20×	50×	100×
Objective lens object-side field of view	φ30mm	φ15mm	φ6mm	φ3mm
Working distance of objective lens	75mm	69mm	44mm	26mm

Magnification error: 0.08%
4. Lighting source
Transmission lighting: 12V 100W halogen tungsten lamp
Reflective lighting: 24V 150W halogen tungsten lamp
5. Rated voltage: AC 220V 50Hz
6. Instrument usage environment
Room temperature: 20℃±5℃, relative humidity: 40%-70%RH
7. Overall dimensions of the instrument (mm): length 746 × width 420 × height 980
8. Instrument weight: 105kg

JT24 φ300 digital projector
Introduction:
The JT24 φ300 digital projector is a metrological instrument that utilizes optical principles to magnify and image the workpiece placed on the workbench through an objective lens with accurate magnification onto a projection screen. The inspector performs various measurements based on the magnified image of the workpiece on the projection screen. The projector is a precision instrument integrating optics, mechanics, electronics, and computing, with a wide range of applications.
