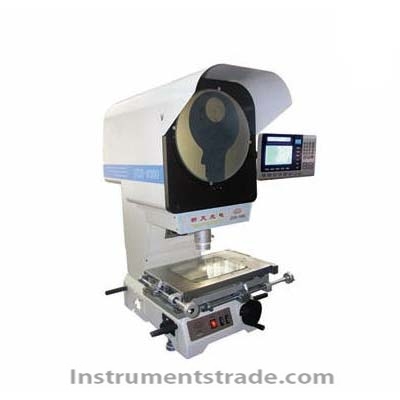

JT20Aφ300 digital projector

Product ID：CLCDtyy028

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model Number JT20Aφ300

Brand NameGYXINTIAN

Payment TermsTT，PAYPAL，Alibaba.com Pay

JT20Aφ300 digital projector
Introduction:
This instrument can efficiently detect the contours and surface shapes of various complex-shaped workpieces. For example, templates, stamped parts, gears, threads, form milling cutters, taps, and other cutting tools, tools, and components. This instrument is widely used in metrology rooms and workshops of factories and mines related to the machinery manufacturing, instrumentation, and watch industries.
Features:
1. The projection box features a lifting and focusing mechanism, with a wide adjustment range on the Z-axis.
2. There are three types of workbenches to choose from, with a wide measurement range and comfortable and lightweight transmission.
3. Precision built-in objective lens, with a rotating button to switch between transmitted and reflected illumination.
4. Depending on the objective lens with different magnifications, the light-passing aperture can be adjusted accordingly.
Technical parameters:
1. Projection screen:
Projection screen size: φ300mm;
Projection screen rotation range: 0°~360°;
Rotation angle display equivalent: 1′;
Rotation angle accuracy: 6′
2. Workbench

type	medium-sized	large-scale
Table size (mm)	400×280	450×286
Measuring range (mm)	200×150	250×150
Focusing range (mm)	0～100
Resolution (mm)	0.001
Instrument accuracy	3+L/75μm (where L is the measured length, unit: mm)
Workbench load capacity (kg)	15	20

3. Objective lens

magnification	10×	20×	50×
Object-side linear field of view	φ30mm	φ15mm	φ6mm
Working distance of the object side	74 mm	69 mm	63 mm

Magnification error: 0.08%
4. Illumination source:
Transmitted illumination with a 24V 150W halogen tungsten lamp
; Reflected illumination with a 24V 150W halogen tungsten lamp
Rated voltage: AC 220V 50Hz
5. Operating environment for the instrument
room temperature: 20℃±5℃, relative humidity: 40%-70%RH

JT20Aφ300 digital projector
Introduction:
This instrument can efficiently detect the contours and surface shapes of various complex-shaped workpieces. For example, templates, stamped parts, gears, threads, form milling cutters, taps, and other cutting tools, tools, and components. This instrument is widely used in metrology rooms and workshops of factories and mines related to the machinery manufacturing, instrumentation, and watch industries.
