JT14B φ300 digital projector

Product ID：CLCDtyy037

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberJT14B φ300

Brand NameXINTIANGUANG

Payment TermsTT，PAYPAL，Alibaba.com Pay

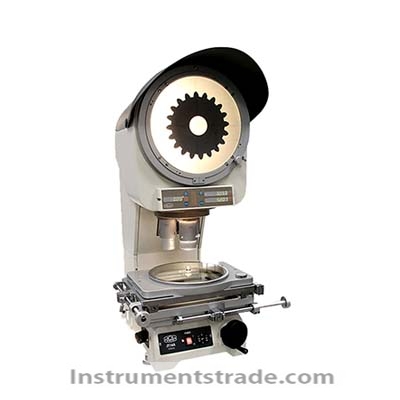

JT14B φ300 digital projector
Introduction:
A projector is a metrological instrument that utilizes optical principles to magnify and image the workpiece placed on a workbench through an objective lens with accurate magnification onto a projection screen. Inspectors perform various measurements based on the magnified image of the workpiece on the projection screen. The projector is a precision instrument integrating optics, mechanics, electronics, and computing, with a wide range of applications.
Features:
1The instrument boasts an aesthetically pleasing appearance, compact structure, and user-friendly operation.
2It employs a high-brightness, long-lasting halogen tungsten lamp as its light source, ensuring clear imaging and even illumination.
3The brightness of transmitted illumination can be adjusted between high and low levels, catering to diverse measurement requirements.
4Depending on the size of the workpiece being measured, three workbench options with different travel distances are available.
5The instrument features a projection box lifting structure with a large Z-direction focusing range.
6The condenser lens is manually adjustable, allowing for corresponding adjustments according to different magnification ratios.
7The tower-style turntable is equipped with three objective lenses, facilitating convenient magnification ratio changes and precise positioning.
8It also features an RS232 interface, compatible with powerful two-coordinate measuring software.
Technical Specifications:
projection screen
Projection screen size: φ300mm
Projection screen rotation range: 0°~360°
Rotation angle display equivalent: 1′
Rotation angle accuracy: 6′
workbench

type	small	large-scale
Table size (mm)	400×280	450×286
Measuring range (mm)	200×150	250×150
Focusing range (mm)	0～100
Resolution (mm)	0.001
Instrument accuracy	3+L/75μm (where L is the measured length, unit: mm)
Workbench load capacity (kg)	15	20

Objective lens

Objective lens magnification	10×	20×	50×	100×
Objective lens object-side field of view	φ30mm	φ15mm	φ6mm	φ3mm
Working distance of objective lens	74mm	69 mm	63 mm	41mm

Magnification error: 0.08%
Rated voltage: AC 220V 50Hz
Lighting source:
Transmitted illumination 24V150W halogen tungsten lamp,
Reflected illumination 24V150W halogen tungsten lamp
Environmental requirements:
room temperature of 20℃±5℃, relative humidity of 40% - 70%RH
Overall dimensions (mm): length 410 × width 650 × height 1070
Instrument weight: 90kg

JT14B φ300 digital projector
Introduction:
A projector is a metrological instrument that utilizes optical principles to magnify and image the workpiece placed on a workbench through an objective lens with accurate magnification onto a projection screen. Inspectors perform various measurements based on the magnified image of the workpiece on the projection screen. The projector is a precision instrument integrating optics, mechanics, electronics, and computing, with a wide range of applications.
