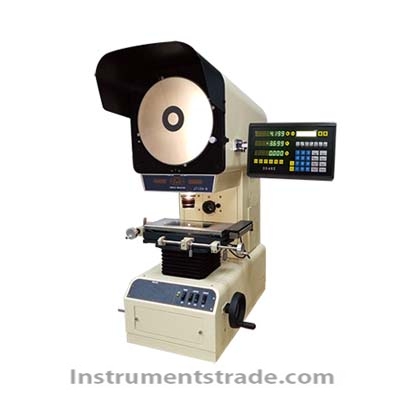

JT12A-b φ300 digital projector
Introduction:
JT12A-b φ300 is a high-precision opto-mechatronic optical metrology instrument primarily designed for two-dimensional dimensional measurement and contour comparison of precision parts. It utilizes an optical system to magnify and project the object being measured onto a φ300mm screen, combining digital measurement technology to achieve high-precision measurement.
Features:
1. The imaging is clear, the magnification is accurate, and the comparison measurement is convenient.
2. Aspheric condenser lens illumination ensures a bright and uniform field of view on the projection screen, reducing measurement errors and providing greater accuracy assurance.
3. Imported long-lasting halogen tungsten lamps are used to meet the needs of long-term use.
4. The axial flow fan features bidirectional heat dissipation, providing superior cooling capacity.
5. Equipped with a DS600 multi-function digital display, and a micro printer is available for purchase.
Technical Specifications:
1. Projection screen
Projection screen size: φ300mm
Projection screen rotation range: 0°~360°
Rotation angle display equivalent: 1′
Rotation angle accuracy: 6′
2. Workbench

Table size (mm)	340×152
Measuring range (mm)	150×50
Focusing range (mm)	0～90
Resolution (mm)	0.001
Instrument accuracy	3+L/75μm (where L is the measured length, unit: mm)
Workbench load capacity (kg)	10

3. Lighting source
Transmission lighting: 12V 100W halogen tungsten lamp
Reflective lighting: 24V 150W halogen tungsten lamp
4. Objective lens

Objective lens magnification	10×	20×	50×	100×
Objective lens field of view in object space	φ30mm	φ15mm	φ6mm	φ3mm
Working distance of objective lens	75mm	69mm	44mm	26mm

5. Magnification error: 0.08%
6. Rated voltage: AC 220V 50Hz
7. Instrument usage environment
Room temperature: 20℃±5℃, relative humidity: 40%-70%RH
8. Overall dimensions of the instrument (mm): length 380 × width 694 × height 1058
9. Instrument weight: 135kg
