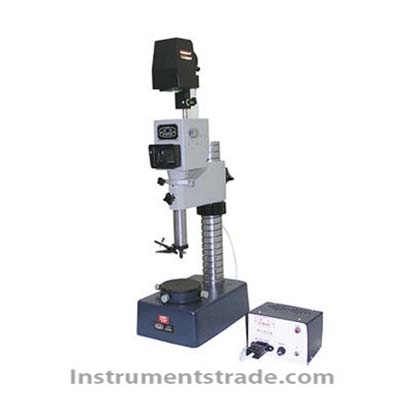

JD3 Projection Vertical Optical Meter Introduction: The projection optical meter is a precision optical mechanical length measuring instrument. It utilizes the method of comparing standard gauge blocks with the measured parts to measure the slight dimensional differences in the shape of components. It is one of the commonly used precision instruments in factory metrology rooms, workshop verification stations, or workshops that manufacture measuring tools, instruments, and precision components. It can verify gauge blocks and high-precision cylindrical gauge blocks, and can compare the diameters of cylindrical and spherical workpieces, the thickness of template workpieces, and the pitch diameter of external threads. Features: 1. Utilizing the new screen technology, and incorporating a reading magnifier, the visual field brightness is uniform, resulting in a clear image quality. 2. The instrument boasts high measurement accuracy and stable, reliable data, facilitating convenient and quick inspection of small-sized precision parts. 3. The instrument boasts a compact structural design and a small external size, facilitating easy transportation. 4. With dual-purpose functionality, the projection optical lens tube can be removed and installed on the machine tool to directly control the machining dimensions. Technical Specifications: 1. Measurement range (mm): 0~180 2. Workbench Circular flat workbench (mm): φ88 Circular ribbed workbench (mm): φ88 Square ribbed workbench (mm): 142×130 The outer diameter size of the auxiliary workbench for measuring the shaft and cap fit is φ6g6 Parallelism error of small three-point workbench: 0.0015mm 3. Instrument accuracy Indication error: Within the range of 60μm: ±0.20μm Beyond the range of 60μm: ±0.25μm Indication stability: 0.1μm 4. Projection optical tube Scale division board scale value: 0.001mm Indexing range of the dividing plate: ±0.1mm Measuring force (N): 2±0.2 Zero position adjustment range: 20 scales The free lifting distance of the measuring rod is 0.5mm Outer diameter fitting size of projection optical tube: φ28h6 The outer diameter size of the measuring rod in conjunction with the measuring cap is φ6g6 5. Environmental requirements Room temperature: 20℃±3℃ Relative humidity: ≤60% Instrument weight: 21kg Overall dimensions of the instrument (mm): length 340 × width 160 × height 750
JD3 Projection Vertical Optical Meter Introduction: The projection optical meter is a precision optical mechanical length measuring instrument. It utilizes the method of comparing standard gauge blocks with the measured parts to measure the slight dimensional differences in the shape of components. It is one of the commonly used precision instruments in factory metrology rooms, workshop verification stations, or workshops that manufacture measuring tools, instruments, and precision components. It can verify gauge blocks and high-precision cylindrical gauge blocks, and can compare the diameters of cylindrical and spherical workpieces, the thickness of template workpieces, and the pitch diameter of external threads.
