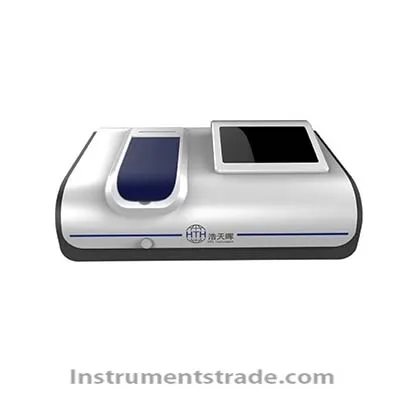

HS-8 double beam UV-visible spectrophotometer

Position: Home > > Analytical instruments > Spectrometry > spectrophotometer > HS-8 double beam UV-visible spectrophotometer

HS-8 double beam UV-visible spectrophotometer

Product ID：FGfg053

Price: US$7,690.00 ~ US$11,000.00 PDF Format

Supply Ability:60SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model NumberHS-8
Brand NameBEIJINGHAOTIANHUI
Payment TermsT/T, paypal

HS-8 double beam UV-visible spectrophotometer
Feature
Chinese host operating system, 7-inch large-screen color touch screen, menu display, can directly display the map, convenient and fast.
Data storage function: large memory capacity, can store up to 1000 standard curves and experimental data. And support external U disk storage and transfer, use USB port printer, print data and map directly, and edit the print test report.
A variety of measurement methods, including wavelength scanning, time scanning, multi-wavelength measurement, multi-derivative measurement (optional), dual-wavelength, three-wavelength (selection) DNA protein measurement (optional), etc., can meet the measurement of different customers. Claim.
According to the user's requirements, you can choose single hole frame, manual four-frame, automatic eight-frame, glass bracket, 1cm color frame, 5cm color frame, 10cm color frame and so on.
More accurate measurement requirements such as spectral scanning and time scanning can be realized by PC software control.

Technical Parameters
Optical path structure: C-T type, parallel double beam
Wavelength range: 190-1100nm
Spectral bandwidth: 2nm
Wavelength accuracy: ±0.3n
Wavelength reproducibility: ≤0.1nm
Transmittance accuracy: ±0.2%τ(0-100%τ)±0.002A(0~0.5A)±0.003A(0.5A~1A)
Transmittance repeatability: ±0.1%τ (0~100%τ)±0.001A (0~0.5A)±0.0015A (0.5A~1A)
Stray light: ≤0.02%τ (220nm Nal, 340nm NaNO2)
Stability: 0.003A/h (after 500nm preheating)
Metering method: transmittance, absorbance, concentration, energy
Wavelength adjustment: automatic adjustment
Luminosity range: -4~4A
Display mode: 7-inch large-screen color touch screen, Bluetooth system
Detector: imported silicon photodiode
Light source: imported xenon lamp, imported tungsten lamp
Power supply: AC220V/50Hz or 110V/60Hz
Power: 120W
Instrument size: 540*430*210mm
Host net weight: 25kg

The HS-8 type dual-beam ultraviolet-visible spectrophotometer has multiple measurement methods such as wavelength scanning, time scanning, multi-wavelength measurement, multi-order derivative measurement (optional), dual-wavelength, three-wavelength (optional) DNA protein measurement (optional), etc. To meet the measurement requirements of different customers. HS-8 dual-beam UV-visible spectrophotometer has a large memory capacity and can store up to 1000 standard curves and experimental data. And support external U disk storage and transfer, use USB port to connect the printer, print data and map directly, and edit and print test reports.
