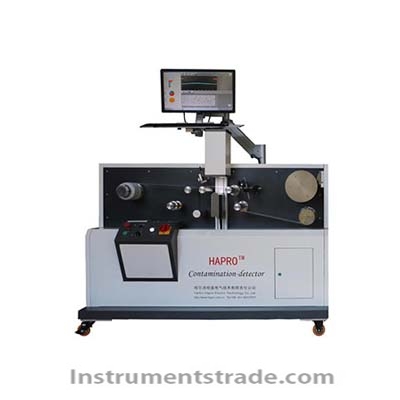

HP-LYZ Casting Impurity Detector

Product ID：GBZzmsb012

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberHP-LYZ

Brand NameHEBHAPU

Payment TermsTT，PAYPAL，Alibaba.com Pay

HP-LYZ Casting Impurity Detector
Introduction:
The flow casting impurity detector is a measuring device that combines a film quality analysis system with a flow casting machine. It can measure thinner films, has the advantages of high testing accuracy and fast testing speed, and has a reliable tension adjustment mechanism to make testing more stable. Can be applied to the detection of insulation materials for high-voltage cables.
The flow casting impurity detector is a measuring device that combines a film quality analysis system with a flow casting machine. It can measure thinner films, has the advantages of high testing accuracy and fast testing speed, and has a reliable tension adjustment mechanism to make testing more stable. Can be applied to the detection of insulation materials for high-voltage cables.
Technical parameters:

optical system
Lens brand	Scheide, Germany	Camera brand	DALSA in the United States
Acquisition card	DALSA in the United States	Working mode	Half/full working mode
resolution	16384×1 Valid Pixels	Range of gain settings	1X~10X
pixel size	3.5μm	Data output accuracy	8-bit/8-bit data can be set
Maximum line frequency	48 KHz	Data output format	Serial data format
Spectral response characteristics	400nm ~1000nm Typical	dynamic range	>65 dB

Measurement system
measured thickness	0.04~2 mm	resolution	20μm
Field of view width	Calendaring 0~50 mm Casting 0~100 mm	detection rate	100%
test speed	>1Kg/h	accuracy	1.0%F.S
Indoor Environment	Ten thousand level	power supply	3∮ AC 380V
Usage temperature	0 ~ +40℃	Film collection speed	0~110mm/s
ambient humidity	< 65%	Roller cooling method	water-cooling
Film formation method		Rolling or casting

Film-forming system
Rolling type impurity detector		Flow casting impurity detector
Rolling roll diameter	110mm	Casting roll diameter	200mm
Rolling roller spacing	0.2~2.5mm	Center height of casting roller	1 m
Flat mold size	60 × 1.5mm, 0.8kW customizable	Casting film mold size	150×0.02~2.5mm Adjustable thickness
Rolling film width	< 60 mm	Casting film width	< 120 mm
Rolling film thickness	0.3~1.0mm	Casting film thickness	0.02~0.5mm
Roll up control mode	constant tension control	Edge cutting device	automatic

Introduction:
The flow casting impurity detector is a measuring device that combines a film quality analysis system with a flow casting machine. It can measure thinner films, has the advantages of high testing accuracy and fast testing speed, and has a reliable tension adjustment mechanism to make testing more stable. Can be applied to the detection of insulation materials for high-voltage cables.
The flow casting impurity detector is a measuring device that combines a film quality analysis system with a flow casting machine. It can measure thinner films, has the advantages of high testing accuracy and fast testing speed, and has a reliable tension adjustment mechanism to make testing more stable. Can be applied to the detection of insulation materials for high-voltage cables.
