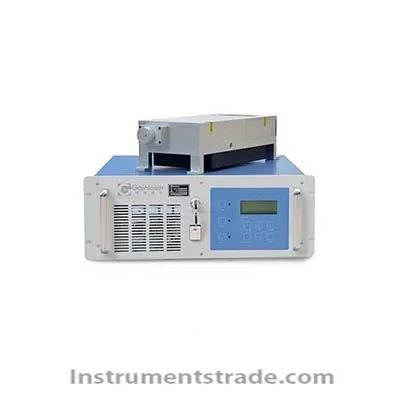

HinergyIr series high single pulse energy solid state laser
Introduction: The HinergyIr series of high single-pulse energy solid-state lasers use a unique laser cavity design technique to achieve a solid laser output with high single-pulse energy. It has great advantages in laser drilling, laser trimming and laser cutting. Features: 1, air-cooled design 2, customer customized service 3, strong resistance to external temperature interference 4, the beam quality is good 5, long-term work stability, 24/7 industrial application 6, CLASS 1000 clean space installation 7, RS232 remote computer control 8, external TTL and PWM control 9, the repetition frequency is 10-150KHz adjustable Technical Parameters: Wavelength: 1064nm Output power: >6W@30KHz Maximum single pulse energy: 3mJ Pulse repetition frequency: 1-15KHz Pulse width: <20ns@30KHz Pulse stability: <3% Average power stability: <3% Spatial mode: TEMOO (M2<1.2) Degree of polarization: Non-polarized Spot size before beam expansion: 1mm Spot roundness: >90% Cooling method: water cooling Warm-up time: <15 minutes Ambient temperature: 18°C-35°C Storage temperature: -10 ° C -50 ° C
Introduction: The HinergyIr series of high single-pulse energy solid-state lasers use a unique laser cavity design technique to achieve a solid laser output with high single-pulse energy. It has great advantages in laser drilling, laser trimming and laser cutting.
