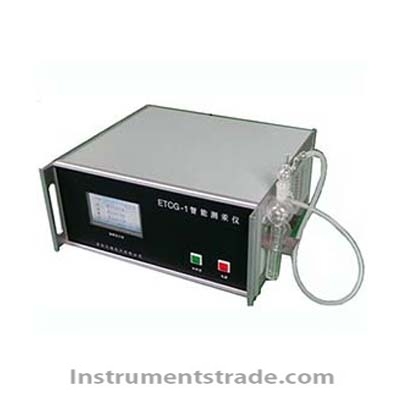

ETCG-1 Intelligent Cold Atomic Absorption Mercury Analyzer

Product ID:FYcg001

Price: US$1,600.00 ~ US$3,500.00 PDF Format
Supply Ability:50SETS/MON
Port:SHENZHEN
  • Product Introduction
  • Other information
  • Model NumberETCG-1
    Brand NameYIMA
    Payment TermsTT,PAYPAL,Alibaba.com Pay
    ETCG-1 Intelligent Cold Atomic Absorption Mercury Analyzer

    Product Introduction
    The ETCG-1 Intelligent Cold Atomic Absorption Mercury Analyzer is designed for accurate, fast, and convenient mercury detection in water, air, soil, food, cosmetics, and chemical raw materials. With intelligent data memory, built-in mercury standard curves, and direct concentration readouts, the ETCG-1 simplifies mercury monitoring for environmental protection, public health, water treatment, and chemical industries.


    Key Features
       •Large color touch display for clear visualization and easy operation.
       •Built-in mercury detection standard curves; users can calibrate and save work curves automatically.
       •Microcontroller-based control with direct readout of mercury concentration (ng/ml), temperature, and humidity—no manual calculations required.
       •Automatic data storage and query functions, including measurement date, time, and values.
       •Compact design, user-friendly interface, and high measurement accuracy.
    Working Principle
    The ETCG-1 uses Cold Atomic Absorption (CAA) technology to detect mercury. Mercury atoms in the sample are vaporized and cooled, and their absorption of light at specific wavelengths is measured. The instrument automatically calculates mercury concentration without manual conversion, ensuring precise and reliable results.


    Technical Specifications
    Parameter Specification
    Measurement Method Cold Atomic Absorption (CAA)
    Measurement Range 0 – 10 ng/ml (samples above 10 ng/ml can be diluted)
    Detection Limit 0.02 ng/ml
    Linearity (R) ≥0.995
    Display Color touch screen
    Simultaneous Display Mercury concentration (ng/ml), temperature, humidity*
    Data Storage 256 sets of measurements
    Calibration Automatic work curve storage for next use
    Flow Rate 1.5 L/min
    Power Supply 220V ±10%
    Dimensions 360 × 320 × 160 mm³
    Operating Temperature 0 – 40 ℃

    Application Scenarios
       •Environmental monitoring: rivers, lakes, soil, and air quality.
       •Public health and hygiene: hospitals, water treatment facilities, and laboratories.
       •Chemical industry: raw material quality control and process monitoring.
       •Food and cosmetics testing: mercury content in products.
    Comparison Highlights
    Feature ETCG-1 Traditional Mercury Analyzers
    Data Memory Automatic storage and query Manual record keeping
    Calibration Built-in standard curves, automatic saving Manual calibration required
    Display Large color touch screen, multi-parameter display Basic LCD or analog
    Measurement Direct readout of ng/ml Requires manual calculation
    Ease of Use Plug-and-play operation Complex procedures, longer training

    FAQ
    Q1: Can I measure samples with mercury concentrations above 10 ng/ml?
    A1: Yes, simply dilute the sample to bring it within the measurement range.
    Q2: Does the instrument require manual calculation?
    A2: No, it automatically displays mercury concentration, temperature, and humidity.
    Q3: How many measurements can the ETCG-1 store?
    A3: Up to 256 sets of data, including date and time.
    Q4: Can the calibration curve be reused?
    A4: Yes, the instrument automatically saves the work curve for next-time use.
    Q5: What is the detection limit?
    A5: The minimum detectable mercury concentration is 0.02 ng/ml.
