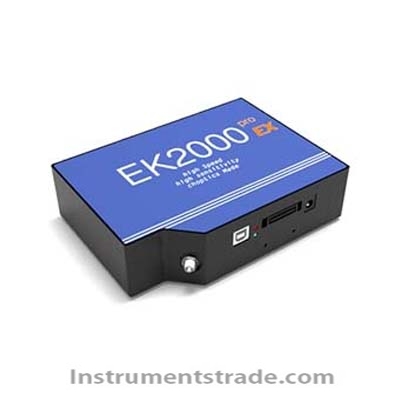

EK2000-Pro Scientific High-Sensitivity Fiber Optic Spectrometer

Product ID：FGgx010

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberEK2000-Pro

Brand NameSHCHENCHANG

Payment TermsTT，PAYPAL，Alibaba.com Pay

EK2000-Pro Scientific High-Sensitivity Fiber Optic Spectrometer

Product Introduction
The EK2000-Pro is a compact, high-sensitivity fiber optic spectrometer designed for scientific research, laboratory analysis, and industrial applications. Equipped with a back-illuminated area-array FFT-CCD detector and a unique crossed optical design, it delivers high sensitivity, high quantum efficiency, and a wide dynamic range, with configurations capable of extending into the deep ultraviolet region.
The spectrometer is particularly suitable for weak-light measurements, including fluorescence detection and other demanding optical analysis applications. Its USB 2.0 interface provides data communication at up to 480 Mbps while supplying power through the USB connection, simplifying system integration and portable operation.

Performance Features
• High-sensitivity CCD detector: Back-illuminated FFT-CCD technology improves light collection efficiency for weak-signal measurements.
• High optical resolution: Optical resolution can reach approximately 0.035 nm FWHM, depending on the optical configuration.
• Wide spectral coverage: Configurable wavelength coverage extends up to 200–1100 nm, depending on the selected grating.
• Advanced crossed optical design: Helps suppress stray light and improve spectral measurement quality.
• Wide dynamic range: A specified dynamic range of 10000:1 supports measurements across varying signal intensities.
• High-speed USB connectivity: USB 2.0 communication at up to 480 Mbps with USB-powered operation.
• Optional order-sorting filters: Help suppress second- and third-order diffraction peaks.
• Optional detector condenser lens: Enhances light collection to improve signal acquisition.
• Compact and portable construction: Suitable for laboratory setups, portable instruments, and integrated optical measurement systems.

Working Principle
The EK2000-Pro uses a diffraction grating to disperse incoming light into its constituent wavelengths. The back-illuminated area-array FFT-CCD detector converts the dispersed optical signal into electrical charges, which are read out and digitized for spectral analysis.
Its crossed optical configuration helps reduce stray light, while the high-sensitivity detector supports the acquisition of weak optical signals. Optional order-sorting filters reduce unwanted higher-order spectral contributions, and an optional condenser lens improves light collection efficiency.
The resulting digital spectrum can be used for fluorescence measurements, optical characterization, and other scientific or industrial analytical applications.

Technical Parameters

Parameter	Specification
Model	EK2000-Pro
Detector	Back-illuminated area-array FFT-CCD
Wavelength Range	Grating-dependent; configurable coverage up to 200–1100 nm
Optical Resolution	Down to approximately 0.035 nm FWHM
Signal-to-Noise Ratio	450:1
A/D Conversion	16-bit, 500 kHz
Nonlinearity	Approximately 4.0%
Corrected Linearity	>99%
Dynamic Range	10000:1
Minimum Integration Time	7 ms
Stray Light	0.2% at 602 nm
Communication Interface	USB 2.0, up to 480 Mbps
Power Supply	USB-powered
Optical Design	Crossed optical path
Higher-Order Suppression	Optional order-sorting filters
Light Collection Enhancement	Optional detector condenser lens

Note: Wavelength coverage and optical resolution depend on the selected grating and optical configuration. The specified nonlinearity and corrected linearity refer to different measurement conditions or processing stages and should be confirmed against the manufacturer's detailed specifications.

Application Scenarios
• Fluorescence spectroscopy: Detection and analysis of weak fluorescence signals in chemical and biological research.
• Scientific research: Optical experiments, spectral characterization, and laboratory instrumentation.
• Industrial optical analysis: Integration into customized optical measurement and quality-control systems.
• UV-Vis spectroscopy: Spectral analysis of samples within the configured wavelength range.
• Material characterization: Investigation of optical properties and wavelength-dependent responses.
• Biochemical analysis: Spectral measurements for suitable biochemical research workflows.
• Portable analytical systems: Integration into compact instruments requiring high sensitivity and USB connectivity.

EK2000-Pro vs. Conventional Fiber Optic Spectrometers

Feature	EK2000-Pro	Conventional Fiber Optic Spectrometers
Detector	Back-illuminated area-array FFT-CCD	Detector type varies by model
Optical Resolution	Down to approximately 0.035 nm FWHM	Configuration-dependent
Dynamic Range	10000:1	Model-dependent
Stray Light	0.2% at 602 nm	Model-dependent
Spectral Coverage	Configurable up to 200–1100 nm	Model-dependent
USB Operation	USB 2.0 communication and power	Power requirements vary
Optical Design	Crossed optical path for stray-light suppression	Optical layout varies
Weak-Light Detection	Designed for high-sensitivity measurements	Depends on detector and optical design
Optional Accessories	Order-sorting filters and detector condenser lens	Depends on manufacturer

Frequently Asked Questions
1. What is the EK2000-Pro fiber optic spectrometer used for?
It is designed for scientific research, industrial optical analysis, fluorescence spectroscopy, and other applications requiring sensitive detection of weak optical signals.
2. What detector does the EK2000-Pro use?
It uses a back-illuminated area-array FFT-CCD detector designed for high sensitivity and efficient light detection.
3. What is the wavelength range of the EK2000-Pro?
The wavelength range depends on the selected grating, with the overall configurable coverage extending up to 200–1100 nm.
4. What is its optical resolution?
The optical resolution can reach approximately 0.035 nm FWHM, depending on the selected optical configuration.
5. Is the EK2000-Pro suitable for fluorescence detection?
Yes. Its high-sensitivity CCD detector and wide dynamic range make it suitable for fluorescence measurements and other weak-light applications.
6. How does the crossed optical design improve performance?
The crossed optical path helps suppress stray light, reducing unwanted optical contributions to the measured spectrum.
7. Does the spectrometer require an external power supply?
The instrument supports USB-powered operation, simplifying installation and integration. Confirm the host USB power capability against the instrument's requirements.
8. Are higher-order diffraction filters available?
Yes. Optional order-sorting filters can be selected to suppress second- and third-order diffraction peaks.
9. Can the signal collection efficiency be improved?
An optional detector condenser lens is available to enhance light collection and support improved signal acquisition.
