CU–600S Total organic carbon analyzer online for Water quality monitoring

Position: Home > > Environmental monitoring and analysis > Water organic pollutants > TOC analyzer > CU–600S Total organic carbon analyzer online for Water quality monitoring

CU–600S Total organic carbon analyzer online for Water quality monitoring

Product ID：HSYJtoc020

Price: US$7,880.00 ~ US$11,580.00 PDF Format

Supply Ability:50

Port:SHENZHEN

Product Introduction
Other information

Model NumberCU–600S

Brand NameHZQIKUN

Payment TermsTT，PAYPAL，Alibaba.com Pay

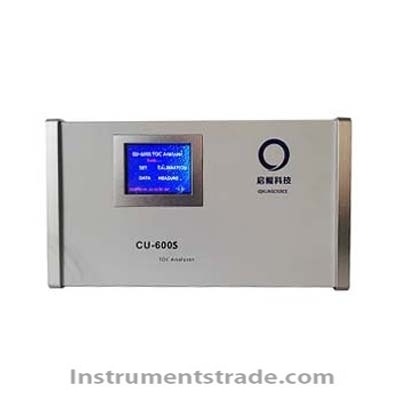

CU-600S Online TOC Analyzer
Overview
The CU-600S Online Total Organic Carbon (TOC) Analyzer is a high-precision water quality monitoring system designed for continuous measurement of TOC, conductivity, and temperature in purified water, ultrapure water, and process water applications.
Featuring a detection limit as low as 0.1 μg/L, advanced conductivity temperature compensation technology, and reagent-free operation, the CU-600S delivers reliable online monitoring while minimizing operating and maintenance costs.
The analyzer is widely used in pharmaceutical manufacturing, semiconductor production, biotechnology laboratories, power plants, and water treatment facilities where strict water quality control is essential.

Why Choose the CU-600S Online TOC Analyzer?
Ultra-Low TOC Detection Limit
The CU-600S offers exceptional sensitivity with a TOC measurement range of:
0.1 μg/L to 1500.0 μg/L
This makes it suitable for monitoring ultrapure water systems and critical pharmaceutical processes.
Benefits
•Detects trace organic contaminants
•Supports GMP and USP water quality requirements
•Ideal for high-purity water applications

Fast Analysis and Real-Time Monitoring
The analyzer provides:
•Minimum analysis interval of 20 seconds
•Response time within 15 minutes
•Continuous online monitoring capability Real-time data enables operators to quickly identify water quality deviations and take corrective actions.

No Reagents or Carrier Gas Required
Unlike many conventional TOC analyzers, the CU-600S operates without:
•Chemical reagents
•Nitrogen carrier gas
•Additional consumables
Advantages
✓ Lower operating costs
✓ Reduced maintenance requirements
✓ Simplified installation
✓ Environmentally friendly operation

Intelligent Touchscreen Interface
The integrated 3.5-inch touchscreen provides:
•User-friendly operation
•Intuitive navigation
•Easy parameter configuration
•Fast access to historical records Operators can quickly monitor system status and perform routine maintenance.

Advanced Data Storage and Management
The CU-600S supports:
•Up to five years of data storage
•Historical trend review
•Daily data search function
•Built-in printer for immediate reporting This feature is particularly useful for GMP compliance, audits, and quality assurance documentation.

Flexible Online and Offline Sampling
The external sampling module allows seamless switching between:
Online Monitoring Mode
Continuous monitoring of process water systems.
Offline Verification Mode
Convenient for:
•Calibration
•Validation
•Laboratory comparison testing
•Maintenance verification

Applications of the CU-600S Online TOC Analyzer
Pharmaceutical Water Systems
The CU-600S is ideal for monitoring:
•Purified Water (PW)
•Water for Injection (WFI)
•Pure Steam Condensate
•Pharmaceutical Process Water
Benefits for Pharmaceutical Manufacturers
•Supports GMP compliance
•Helps meet USP and EP requirements
•Ensures continuous water quality verification

Semiconductor and Electronics Industry
High-purity water is critical for semiconductor fabrication.
The CU-600S can be used for:
•Ultrapure water systems
•Semiconductor cleaning processes
•LCD manufacturing
•Solar cell production
Benefits
•Detects organic contamination at extremely low levels
•Improves product yield
•Protects sensitive manufacturing processes

Biotechnology and Research Laboratories
Suitable for:
•Biotechnology laboratories
•Universities
•Research institutes
•Quality control laboratories The analyzer provides accurate TOC measurement for water quality evaluation and research applications.

Power Generation Industry
Applications include:
•Boiler feed water
•Condensate systems
•Power plant water treatment
•High-purity process water
Benefits
•Early contamination detection
•Improved equipment protection
•Enhanced operational reliability

Water Treatment and Environmental Monitoring
Widely used in:
•Municipal water treatment plants
•Wastewater treatment facilities
•Reclaimed water systems
•Industrial water treatment processes
Benefits
•Continuous online monitoring
•Improved process control
•Regulatory compliance support

Technical Specifications

Parameter	Specification
TOC Measurement Range	0.1 μg/L – 1500.0 μg/L
Detection Limit	0.1 μg/L
Measured Parameters	TOC, Conductivity, Temperature
Conductivity Range	0.055 – 6.000 μS/cm
Accuracy Error	≤ ±5%
Repeatability	≤ 3%
Analysis Interval	Minimum 20 seconds
Response Time	≤ 15 minutes
Sample Temperature	0–100°C
Zero Drift	±2%/Day
Span Drift	±2%/Day
Sampling Method	Water pressure + online sampler + peristaltic pump
Ambient Temperature	10–60°C
Relative Humidity	≤90%
Power Supply	AC 220V ±10%, 50Hz
Analog Output	4–20mA
Alarm Function	High-limit alarm output

CU-600S vs Traditional Online TOC Analyzers

Comparison Item	CU-600S	Conventional TOC Analyzer
Detection Limit	0.1 μg/L	1–10 μg/L
Analysis Speed	20 Seconds	1–5 Minutes
Reagents Required	No	Often Yes
Carrier Gas Required	No	Often Yes
Data Storage	5 Years	1–2 Years
Touchscreen Display	Yes	Limited
Maintenance Cost	Low	Higher
Online/Offline Switching	Yes	Limited

Frequently Asked Questions (FAQ)
What is an Online TOC Analyzer?
An online TOC analyzer continuously measures the amount of total organic carbon present in water. It is commonly used to monitor water purity and detect organic contamination in pharmaceutical, semiconductor, and industrial applications.

Why is TOC Monitoring Important?
TOC monitoring helps:
•Verify water purity
•Detect contamination early
•Protect manufacturing processes
•Meet regulatory requirements
•Improve product quality

Does the CU-600S Require Reagents or Carrier Gas?
No. The CU-600S is designed for reagent-free and carrier gas-free operation, reducing both operating expenses and maintenance requirements.

Can the Analyzer Be Integrated with a PLC or DCS System?
Yes. The instrument supports a standard 4–20mA output signal, making integration with PLC, SCADA, and DCS systems simple and efficient.

CU-600S Online TOC Analyzer for real-time TOC monitoring. No reagents or carrier gas required. Ideal for pharmaceutical, semiconductor, and ultrapure water applications.
