CU-500 Total Organic Carbon (TOC) Analyzer for Deionized Water Preparation Process in Power Plants

Product ID：HSYJtoc021

Price: US$3,180.00 ~ US$5,680.00 PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberCU-500

Brand NameYIMA

Payment TermsTT，PAYPAL，Alibaba.com Pay

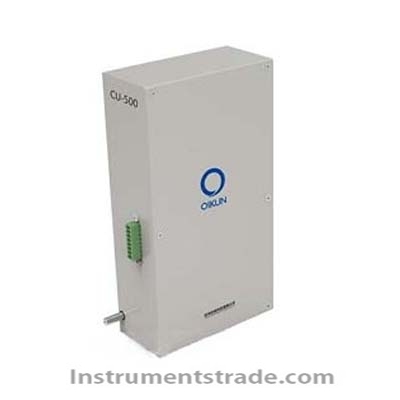

CU-500 Total Organic Carbon (TOC) Analyzer Module
Product Overview
The CU-500 Total Organic Carbon (TOC) Analyzer Module is a high-precision water quality testing device that utilizes UV lamp static oxidation to analyze water samples. During testing, the water sample is fully isolated in a closed chamber to prevent environmental contamination and ensure accurate results. The TOC value is determined by measuring the conductivity changes before and after oxidation, reflecting the organic carbon content in the water.
The compact CU-500 module can be seamlessly embedded into pharmaceutical water systems, semiconductor ultrapure water preparation systems, and power plant deionized water monitoring. It supports RS485 and RS232 communication, with optional 4-20mA output, touchscreen, data storage, and printer modules for flexible industrial automation applications.

Key Features
•High Detection Accuracy: Wide measurement range with TOC detection as low as 0.1 µg/L and repeatability ≤3%, ensuring precise water quality monitoring.
•Compact and Lightweight: Dimensions 12cm × 5.6cm × 22cm, weight only 2 kg, ideal for embedding in existing equipment.
•Low Maintenance: No carrier gas or chemical reagents required, reducing operational cost and simplifying maintenance.
•Flexible Communication: Supports RS485/RS232 and optional 4-20mA output for integration with industrial control systems.
•Expandable Functionality: Optional 3.5-inch touchscreen, data storage, and printer for customized monitoring needs.
•Robust Operation: Operates under 0–40°C temperature and ≤85% relative humidity, suitable for diverse industrial environments.

Working Principle
The CU-500 TOC Analyzer Module converts organic carbon in water samples into CO₂ using UV lamp static oxidation. The conductivity change before and after oxidation is directly proportional to the TOC concentration. The closed-chamber design prevents environmental contamination, providing reliable and accurate measurements.
Process Flow:
•Water sample enters the closed detection chamber.
•UV lamp oxidizes the organic carbon in the sample.
•Conductivity sensors measure pre- and post-oxidation water conductivity.
•Data processing calculates the TOC value for real-time monitoring.

Technical Specifications

Parameter	Specification
TOC Measurement Range	0.1 µg/L – 1000.0 µg/L
Conductivity Range	0.055 µS/cm – 6.000 µS/cm
Measurable Items	TOC, conductivity, temperature
Accuracy	≤ ±5%
Repeatability	≤ 3%
Zero Drift	±2%/day
Span Drift	±2%/day
Response Time	≤ 15 min
Sample Temperature	0–100°C
Sample Input	Water network pressure
Ambient Temperature	0–40°C
Relative Humidity	≤ 85%
Power Supply	24V DC
Power Consumption	50 W
Dimensions	12cm × 5.6cm × 22cm
Weight	2 kg
Communication Interfaces	RS485/RS232, optional 4-20mA
Optional Accessories	3.5-inch touchscreen, data storage, printer

Applications
The CU-500 TOC analyzer module is widely used for online monitoring of high-purity and industrial water systems, including:
•Pharmaceutical Industry: Real-time TOC monitoring in water systems, compliant with GMP standards.
•Semiconductor Industry: Ultrapure water preparation and wafer process water quality control.
•Power Plants: Deionized water production and boiler water monitoring for safe operation.

Comparison with Traditional TOC Analyzers

Feature	CU-500 Module	Traditional TOC Analyzer
Detection Accuracy	High, down to 0.1 µg/L	Moderate, usually ≥1 µg/L
Sample Isolation	Yes, closed chamber	No, prone to environmental contamination
Size & Weight	Compact & lightweight	Large and bulky
Maintenance	No chemical reagents, low-maintenance	Requires regular chemical cleaning
System Integration	Easily embedded into water and industrial systems	Typically standalone

FAQ (Frequently Asked Questions)
Q1: Can the CU-500 module operate continuously online?
A1: Yes, it is designed for long-term online monitoring and can be fully integrated with automated control systems.
Q2: What is the acceptable water sample temperature range?
A2: The module supports 0–100°C, suitable for most industrial water systems.
Q3: Are carrier gases or chemical reagents needed?
A3: No, CU-500 operates without carrier gas or chemical reagents, simplifying maintenance.
Q4: How are measurement results obtained?
A4: Data can be output via RS485, RS232, optional 4-20mA interface, and optional touchscreen, data storage, or printer.
Q5: Which industries is the CU-500 suitable for?
A5: Pharmaceutical, semiconductor, and power industries, especially for ultrapure or deionized water systems.
