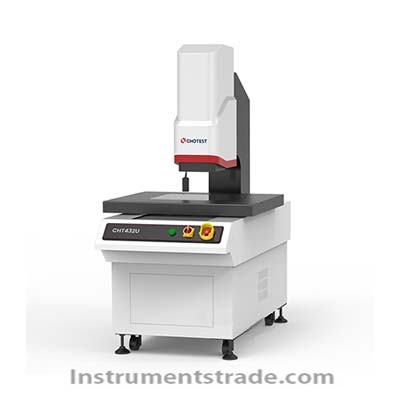

CHT series fully automatic imaging instrument Introduction: The CHT series of fully automatic image measuring instruments covers different measurement ranges and utilizes a marble-based machine frame, a precise servo control system, and an optical electric zoom lens to achieve high-precision measurements. The CHT series of fully automatic image measuring instruments is powerful and capable of precise measurements of surface dimensions, contours, angles and positions, form and position tolerances, and other aspects of various complex parts. The CHT series of fully automatic image measuring instruments can be used in various fields such as machinery, electronics, molds, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, terminals, mobile phones, home appliances, printed circuit boards, medical devices, clocks and watches, cutting tools, metrology and testing, and more. Features: Stable mobile platform structure 1. Precision marble machine platform, with good stability; 2. Precise linear guide rails and servo control systems ensure system accuracy; 3. Three-axis fully automatic programmable detection enables batch detection of complex features. Flexible shooting, precise calculation 1. Combining measurements with high-resolution lenses and wide-angle lenses, achieving both measurement efficiency and accuracy; 2. Support segmented programming control for surface light, transmitted light, and coaxial light; 3. Automatically identify the measurement site, ensuring consistent and stable measurement results every time. 4. Advanced algorithm, certified by PTB (German Federal Institute for Physical Technology). Automatic measurement, faster batch processing 1. The program matches the workpiece coordinate system and automatically executes the measurement process; 2. Support the import of CAD drawings and Gerber drawings, with coordinate system matching and measurement; 3. In the CNC fixed coordinate system mode, batch measurement can be quickly and accurately performed; Rich accessories, multiple composite measurements 1. Support triggering of touch probes and optical probes for height and flatness measurements, enabling 3D spatial measurement; 2. Support external inputs such as calipers and height gauges, with centralized data management; 3. Support label printer. Easy to operate, hassle-free 1. Anyone can quickly get started with it, without requiring complex training; 2. With a concise operation interface, anyone can easily set up and measure; 3. Generate statistical analysis, test result reports, etc. with one click. The software is feature-rich and supports automatic reporting 1. Provide up to 80 analysis tools for feature extraction, auxiliary construction, intelligent annotation, geometric and positional tolerancing, special applications, etc; 2. Automatically generate SPC analysis reports, support Q-DAS transmission, and enable remote data integration.
CHT series fully automatic imaging instrument Introduction: The CHT series of fully automatic image measuring instruments covers different measurement ranges and utilizes a marble-based machine frame, a precise servo control system, and an optical electric zoom lens to achieve high-precision measurements. The CHT series of fully automatic image measuring instruments is powerful and capable of precise measurements of surface dimensions, contours, angles and positions, form and position tolerances, and other aspects of various complex parts. The CHT series of fully automatic image measuring instruments can be used in various fields such as machinery, electronics, molds, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, terminals, mobile phones, home appliances, printed circuit boards, medical devices, clocks and watches, cutting tools, metrology and testing, and more.
