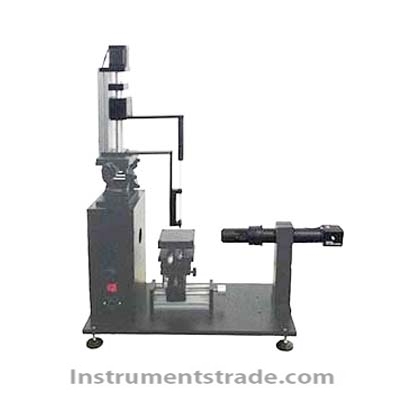

CA100A water Contact angle meter for Hydrophilicity

Product ID:WBjzj001

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberCA100A
    Brand NameYM
    Payment TermsT/T, paypal
    Features
    1: equipment the overall mechanical structure with all metal aluminum alloy material, durable;Components are modular design, convenient user break-up and assembled, meet the precision ofthe user requirements.
    2: screw-type adjustable platform in the four corners. Convenient for the user in any unevenplatform, can be arbitrary adjustment, to ensure that the droplet platform level.
    3: the unique camera fixed bracket, wide scale before and after the distance; Humanized ptfering camera shell, scratch the camera to prevent moved back and forth; Hexagonal screw fasteningstructure, convenient user tighten camera, prevent pictures of jitter.
    4: humanization of ball screw and guide rail technology, ensure the quickness of droplet platformback and forth motion and move around, and balancing precision of mobile, manual mobile precisionerror is 0.01 mm; Before and after the broad mobile space, adjustable moving range up to 80 mm,easy to move the camera and a sample machine to a best position.
    5:Samples of adjustable horizontal object stage, convenient user adjust sample units to the level state.
    6: droplet sample manual differential head and trace titration method, the precision of 0.1 uL;Calibration is clear, easy to use; A needle locking structure; Optional stainless steel, teflon, etcmaterial needles, satisfy user needs material.
    7: broad droplet sampler distance to move up and down, up and down adjustable range of up to 60 mm.
    8:360 overall rotation accuracy as high as 0.01 degrees automatically. Support user since the programmingto realize a rotation Angle, the function of the snap a photo.
    9: back light adopts LED cold light source technology, continuous adjustable brightness, droplet is clearlyvisible; No fever, avoid long time detection, droplet vaporized.
    10: camera adopts high performance industrial digital video camera with high resolution, high accuracy,high resolution, good color reproduction, and the advantages of low noise,
    Technical parameters
    Type  keyword base type of Contact Angle meter
    Test resolution 0.01°
    Accuracy of the test 0.1°
    Contact Angle test range 0°<θ<180°
    Sample level around mobile Manual travel:100mm
    Sample level before and after the move  Manual travel:80mm
    Sample on the move

    Manual travel:10mm     precision:0.01mm
    Lifting platform under the sample stage Coarse 35 mm trip

    Horizontal adjustment To adjust the platform level feet
    Rotating sample NO
    The sample table size 80*80mm
    Move up and down into the fluid control The manual into the fluid stroke :90mm
      precision:0.01mm
    The camera moving around travel: 0mm
    The light source Adjustable brightness monochromatic light LED light source
    The lens  Industrial continuous zoom lens
     0.7-4.5X
