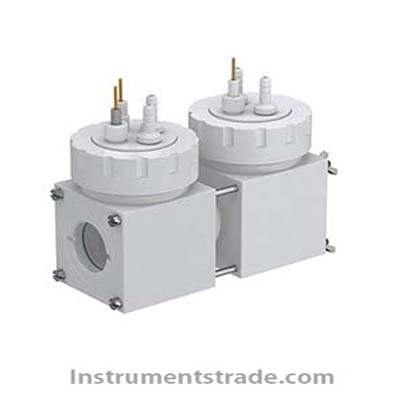

C027 PTFE replaceable membrane electrolytic cell

Product ID:FDgzz041

US$0.00 ~ US$1.00 PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberC027
    Brand NameGAOSHIRUILIAN
    Payment TermsTT,PAYPAL
    C027 PTFE replaceable membrane electrolytic cell

    Introduction:
    The working principle of the electrolytic cell is to allow the current to pass through the electrolyte solution (or molten electrolyte) and cause a redox reaction at the cathode and anode, so as to realize the conversion of electrical energy into chemical energy.
    Technical features:
    1. The working electrode, auxiliary electrode and reference electrode of the electrolytic cell can be matched according to the needs, and the electrodes must be lengthened.
    2. The body material of the electrolytic cell is polytetrafluoroethylene
    3. The electrolytic cell is often used in a three-electrode system. The volume of the electrolytic cell ranges from 30ml to 500ml, and can also be customized according to requirements.
    4. The electrolytic cell is a relatively sealed electrolytic cell system. The cathode chamber (working electrode) and the anode chamber (comparison electrode) are isolated by an ionic membrane (provided by the user). The specific electrode and the working electrode are in the same room, which effectively reduces the R drop.
    5. The sealing part of the cell body of the electrolytic cell is designed with an external thread opening, and the inner core part is made of 360-degree rotating polytetrafluoroethylene, so that the electrode can accurately correspond to the light window, and the sealing is performed by tightening the outer cover.
    6. The electrode part of the electrolytic cell is sealed on the PTFE plug, and the sealing effect is achieved by the sealing screw extrusion ring
    7. The electrolytic cell is equipped with an aeration device that can ventilate under the liquid surface, and different shapes of aeration devices are selected for the atmosphere according to different experiments. For example, straight-type aeration is used for carbon reduction, and L-type aeration is used for nitrogen reduction.
    8. The electrolytic cell can add a sampling port on the cell body, at which time additional costs are required.
    9. The electrolytic cell is a relatively sealed system. If an absolute sealing method is required, a valve should be added on the top of the electrolytic cell cover. Please refer to C13378FD-2 model.
    10. The quartz plate of the electrolytic cell can be quickly disassembled and replaced
  • Introduction:
    The working principle of the electrolytic cell is to allow the current to pass through the electrolyte solution (or molten electrolyte) and cause a redox reaction at the cathode and anode, so as to realize the conversion of electrical energy into chemical energy.
