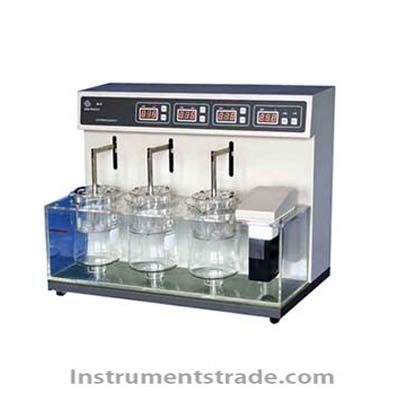

BJ-3 Tablet Disintegration Instrument (Three Cups)

Product ID：HZYJbjy002

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberBJ-3

Brand NameTJJINGTUO

Payment TermsTT，PAYPAL，Alibaba.com Pay

BJ-3 Tablet Disintegration Instrument (Three Cups)
Product Introduction
The BJ-3 Tablet Disintegration Instrument (Three Cups) is a professional pharmaceutical disintegration time testing instrument designed to determine the disintegration time of tablets, capsules, pills, and other solid dosage forms.
The instrument complies with relevant requirements of the Chinese Pharmacopoeia and is widely used in pharmaceutical laboratories, quality inspection departments, research institutes, and drug manufacturing facilities.
Equipped with a three-basket independent working system, high-precision electronic temperature sensors, intelligent microcomputer control, and automatic water bath temperature regulation, the BJ-3 provides accurate, stable, and efficient disintegration testing performance.

Performance Features
Three-Cup Independent Testing System
• Equipped with three basket assemblies for simultaneous disintegration testing.
• Three test channels can operate independently.
• Each basket can be separately controlled.
High-Precision Temperature Control
• Uses digital electronic temperature sensors.
• Real-time monitoring of water bath and beaker temperature.
• Automatic temperature control at 37℃ according to pharmacopoeia requirements.
• Preset temperature can be adjusted according to testing needs.
Intelligent Microcomputer Control
• Uses SCM (single-chip microcomputer) control technology.
• Automatically manages:
  Water temperature
  Test time
  Basket lifting operation
Accurate Timing Function
• Preset lifting time: 15 minutes.
• Adjustable timing range from 1–999 minutes.
• High timing accuracy for reliable results.
Safety Protection System
• Equipped with water bath over-temperature alarm.
• Automatic protection function improves operational safety.
Stable Mechanical Operation
• High precision lifting mechanism.
• Low operating noise below 60dB.
• Smooth and reliable test operation.

Working Principle
The BJ-3 tablet disintegration tester evaluates the time required for tablets or capsules to break down under specified test conditions.
The testing process includes:
1. The sample is placed inside the basket assembly.
2. The basket moves vertically in the temperature-controlled medium.
3. The water bath maintains the test temperature at the specified value (normally 37℃).
4. The repeated upward and downward movement simulates physiological conditions.
5. The operator observes the sample disintegration process.
6. The instrument records the required disintegration time.
The three-cup structure allows multiple samples to be tested simultaneously, improving laboratory efficiency and repeatability.

Technical Parameters

Parameter	Specification
Model	BJ-3
Instrument Type	Three-Cup Tablet Disintegration Tester
Application	Tablet, capsule and pill disintegration testing
Compliance Standard	Chinese Pharmacopoeia requirements
Basket Quantity	3 sets lifting baskets
Basket Operation	Three independent working channels
Temperature Preset Range	Room temperature–50℃
Temperature Resolution	0.1℃
Temperature Control Accuracy	±0.3℃
Timing Range	1–999 min
Time Control Accuracy	±0.5 min
Automatic Temperature Control	37℃ standard setting
Basket Lifting Frequency	30–31 times/min
Lifting Distance	55±1 mm
Minimum Distance from Screen to Cup Bottom	25±2 mm
Standard Screen Aperture	2 mm
Optional Screen Aperture	0.425 mm / 1 mm
Working Noise	<60dB
Power Supply	220V / 50Hz
Machine Power	600W
Dimensions	540 × 320 × 440 mm

Application Scenarios
1. Pharmaceutical Manufacturing
Used for:
• Tablet quality control
• Capsule performance testing
• Batch release inspection
2. Drug Research Laboratories
Suitable for:
• New formulation development
• Tablet formulation optimization
• Pharmaceutical research experiments
3. Quality Inspection Institutions
Applied in:
• Drug quality supervision
• Pharmacopoeia compliance testing
• Laboratory analysis
4. Universities and Research Centers
Used for:
• Pharmaceutical education
• Scientific research projects
• Drug delivery studies

BJ-3 Tablet Disintegration Tester vs Traditional Disintegration Tester

Feature	BJ-3 Three-Cup Disintegration Instrument	Traditional Disintegration Tester
Test Capacity	Three independent baskets	Limited testing positions
Control Mode	Intelligent microcomputer control	Manual operation
Temperature Control	Digital sensor automatic control	Less precise adjustment
Temperature Accuracy	±0.3℃	Lower accuracy
Timing Range	1–999 minutes adjustable	Limited timing function
Basket Control	Independent operation	Shared control
Safety Function	Over-temperature alarm and protection	Basic protection
Testing Efficiency	Higher throughput	Lower efficiency

FAQ
Q1: What is the BJ-3 tablet disintegration instrument used for?
The BJ-3 is used to measure the disintegration time of tablets, capsules, pills, and other pharmaceutical solid dosage forms.
Q2: Does BJ-3 comply with pharmacopoeia requirements?
Yes. The instrument is designed according to the requirements of the Chinese Pharmacopoeia for disintegration testing.
Q3: How many samples can BJ-3 test at the same time?
The BJ-3 uses a three-cup design and can perform three independent basket tests.
Q4: What is the standard testing temperature?
The instrument automatically controls the water bath temperature at 37℃ according to pharmacopoeia standards.
Q5: Can the test time be adjusted?
Yes. The timing range can be set from 1 to 999 minutes according to testing requirements.
Q6: What type of temperature sensor does the instrument use?
It uses a high-precision digital electronic temperature sensor for accurate temperature monitoring.
Q7: Does BJ-3 have an alarm function?
Yes. It provides water bath over-temperature alarm and automatic protection functions.
Q8: What screen aperture options are available?
The standard screen aperture is 2mm, with optional 0.425mm and 1mm apertures available.

Product Summary
The BJ-3 Tablet Disintegration Instrument (Three Cups) is a high-precision pharmaceutical tablet disintegration tester designed for reliable quality control of tablets, capsules, and pills. With independent three-cup testing, intelligent temperature management, accurate timing control, and safety protection features, it is an ideal solution for pharmaceutical factories, laboratories, research institutes, and drug inspection organizations.
