BJ-1 Intelligent Disintegration Tester

Position: Home > > Industry specific instrument > Drug testing instrument > Disintegration instrument > BJ-1 Intelligent Disintegration Tester

BJ-1 Intelligent Disintegration Tester

Product ID：HZYJbjy001

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberBJ-1

Brand NameTIANGUANGH

Payment TermsTT，PAYPAL，Alibaba.com Pay

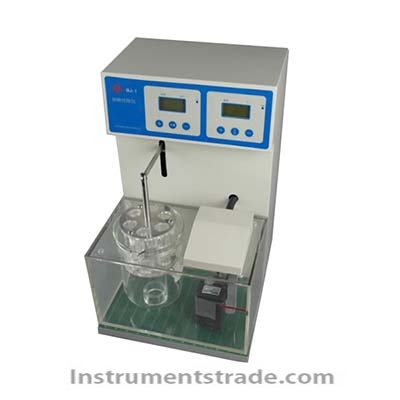

BJ-1 Intelligent Disintegration Tester

Product Introduction
The BJ-1 Intelligent Disintegration Tester is designed for tablet disintegration time testing according to the relevant requirements of the Chinese Pharmacopoeia. It is suitable for determining the disintegration time of pharmaceutical tablets under controlled temperature and mechanical movement conditions.
With a compact structure, simple operation, advanced integrated circuit design, and reliable performance, the BJ-1 provides a practical solution for routine pharmaceutical quality control and laboratory tablet disintegration testing.

Performance Features
• Chinese Pharmacopoeia-Based Design: Designed according to the requirements for tablet disintegration time testing in the Chinese Pharmacopoeia.
• Adjustable Test Time: Test time can be freely set from 0 to 9 hours.
• Controlled Water Bath: Water-bath temperature can be adjusted from 30 to 40°C.
• Stable Temperature Control: Temperature accuracy after reaching equilibrium is ±0.5°C.
• Stable Basket Movement: Basket frequency is controlled at 30–32 cycles/min.
• Compact Design: Small size and simple operation make the instrument convenient for laboratory use.
• Reliable Integrated Circuit: Advanced integrated circuit design provides stable and reliable operation.
• Optional Fine-Mesh Screen: Standard screen aperture is 2 mm, with a 0.425 mm screen available as a special option.

Working Principle
During a tablet disintegration test, the test sample is placed in the specified basket-rack assembly and immersed in the temperature-controlled water bath. The basket moves vertically at a controlled frequency and stroke, simulating the mechanical conditions specified for the test.
The BJ-1 Intelligent Disintegration Tester maintains the water bath within the selected temperature range while controlling the basket movement. The test timer records the required disintegration time, allowing the operator to determine whether the tablet has disintegrated within the specified testing period.

Technical Specifications

Parameter	Specification
Product Model	BJ-1
Product Type	Intelligent Disintegration Tester
Application	Tablet Disintegration Time Testing
Test Timer Range	0–9 h, freely adjustable
Water-Bath Temperature	30–40°C, freely adjustable
Temperature Accuracy	±0.5°C after temperature stabilization
Basket Movement Frequency	30–32 cycles/min
Basket Stroke	55 ± 0.5 mm
Minimum Screen-to-Cup Bottom Distance	25 ± 2 mm
Standard Screen Aperture	2 mm
Optional Screen Aperture	0.425 mm
Power Supply	220 V, 50 Hz
Ambient Temperature	5–35°C
Relative Humidity	≤80%
Power Consumption	150 W

Application Scenarios
The BJ-1 tablet disintegration tester can be used in:
• Pharmaceutical quality control laboratories
• Tablet formulation development
• Pharmaceutical manufacturing inspection
• Drug testing laboratories
• Research and development laboratories
• Routine tablet disintegration time testing
• Pharmacopoeial testing applications
Comparison with Conventional Disintegration Testers

Feature	BJ-1 Intelligent Disintegration Tester	Basic Manual Disintegration Testing
Timing	0–9 h adjustable	Manual timing
Water-Bath Temperature	30–40°C adjustable	Requires external control
Temperature Accuracy	±0.5°C after stabilization	Depends on external equipment
Basket Frequency	30–32 cycles/min	Manual or less controlled
Basket Stroke	55 ± 0.5 mm	Depends on apparatus
Screen Aperture	2 mm; 0.425 mm optional	Fixed according to apparatus
Operation	Simple instrument-based operation	More manual intervention
Power	220 V, 50 Hz	Depends on setup

FAQ
1. What is the BJ-1 Intelligent Disintegration Tester used for?
It is used for testing the disintegration time of tablets according to relevant Chinese Pharmacopoeia requirements.
2. What is the timer range of the BJ-1?
The timer can be freely set from 0 to 9 hours.
3. What is the water-bath temperature range?
The water-bath temperature can be adjusted from 30 to 40°C.
4. What is the temperature accuracy?
After the water bath reaches a stable temperature, the temperature accuracy is ±0.5°C.
5. What is the basket movement frequency?
The basket operates at 30–32 cycles per minute.
6. What is the basket lifting distance?
The basket lifting stroke is 55 ± 0.5 mm.
7. What is the standard screen aperture?
The standard screen aperture is 2 mm. A 0.425 mm screen can be specially configured.
8. What are the operating environmental conditions?
The recommended ambient temperature is 5–35°C, with relative humidity of ≤80%.
9. What is the power consumption of the BJ-1?
The total power consumption is 150 W, with a power supply of 220 V, 50 Hz.
