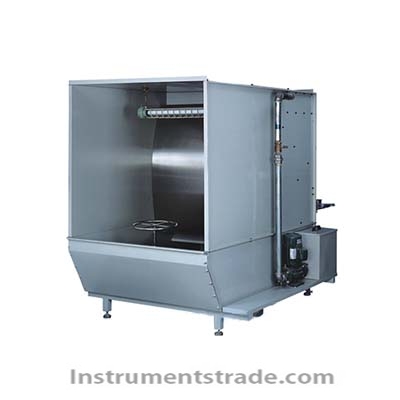

BGD 229 water curtain spray paint cabinet

Product ID：GBZzmsb008

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberBGD 229

Brand NameBIAOGEDA

Payment TermsTT，PAYPAL，Alibaba.com Pay

BGD 229 water curtain spray paint cabinet
Introduction:
The water curtain spray paint cabinet can prevent paint powder from scattering and causing environmental pollution. It utilizes the "film" effect and viscosity of water to mix paint with water and separate it from air. Due to the use of a secondary spray system, the removal rate of waste paint in the water curtain cabinet reaches over 99%, and it is recycled using a water circulation system. Automated painting equipment achieves high efficiency, coating savings, and low pollution from oil and rust removal, spray painting, powder coating, drying and curing to finished products. Applicable industries: Suitable for large-scale production of workpieces in home appliance factories, bicycle factories, handicraft factories, and hardware and plastic factories.
characteristic:
1.Composed of a pool, water curtain board, top plate, side plate, water circulation system, and exhaust system, it has good environmental performance, good paint mist filtration effect, and no leakage phenomenon;
2.The cabinet body is made of 1.5mm cold plate bent and equipped with M16 foot cups. The surface is treated with electrostatic spray paint (not ordinary paint), which is corrosion-resistant and rust proof;
3.The overflow tank is made of 1.5mm stainless steel plate, and the water curtain plate is made of 1.0mm stainless steel plate.
4.The water circulation adopts 3-inch PVC water pipes with drainage valves and copper ball control valves.
Technical parameters:

model	BGD 229/1	BGD 229/2	BGD 229/3
Water curtain size (L × H, mm)	1500×1140	2000×1140	2440×1140
Fan motor power (KW)	1.1	1.5	1.5
Air outlet size (L × W/mm)	250×290	250×290	250×290
Exhaust air volume (m ³/h)	1330	1380	1380
Pump power (KW)	0.75	0.75	0.75
Dimensions (L × W × H/cm)	185×155×240	235×155×240	280×155×240
Weight (including fan, KG)	250	300	350

Introduction:
The water curtain spray paint cabinet can prevent paint powder from scattering and causing environmental pollution. It utilizes the "film" effect and viscosity of water to mix paint with water and separate it from air. Due to the use of a secondary spray system, the removal rate of waste paint in the water curtain cabinet reaches over 99%, and it is recycled using a water circulation system. Automated painting equipment achieves high efficiency, coating savings, and low pollution from oil and rust removal, spray painting, powder coating, drying and curing to finished products. Applicable industries: Suitable for large-scale production of workpieces in home appliance factories, bicycle factories, handicraft factories, and hardware and plastic factories.
