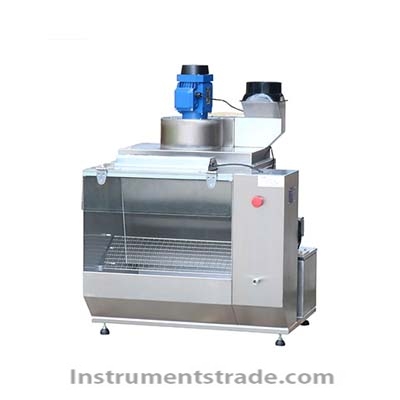

BGD 228 desktop water curtain spray paint cabinet Introduction: When the spray gun is spraying on the workpiece, the paint sprayed by the spray gun cannot be completely absorbed by the workpiece, resulting in a large amount of harmful paint mist to the human body. In order to prevent indoor and outdoor air from being polluted by paint mist and maintain the health of spray painting workers, our company has developed a desktop water curtain spray painting cabinet for small-scale spraying in the laboratory. This paint cabinet adopts the latest design scheme, utilizing the principle of negative air pressure. During operation, the strong air flow (suction) formed by negative pressure in the air flow channel at the bottom of the water curtain creates vortices in the water here to flush the inhaled paint mist. The air is discharged outside by the fan, leaving oil residue in the water. This paint cabinet can directly apply the remaining paint powder during painting to the pool or water curtain surface, with a treatment effect of over 90%. The odor and excess paint powder generated during painting are filtered through a water curtain and discharged outside the painting room through an exhaust fan, thereby purifying the painting working environment and protecting personal health, while also enhancing the smoothness of the painted workpiece surface. In addition, the paint cabinet is made of all stainless steel box and equipped with a high-pressure centrifugal fan, which has the characteristics of small footprint, simple operation, safe use, and convenient cleaning. It is a new type of environmental protection equipment that is worth promoting vigorously. Technical parameters: Dimensions (mm): 810mm × 750mm × 1160mm (L × D × H) Studio size (mm): 600mm × 500mm × 600mm (L × D × H) Power supply: 220V 50HZ Exhaust wind speed: 12m/s Fan: Single phase centrifugal fan, power 370W Pump power: 375W Test panel rack size (mm): 595mm × 200mm (L × W) Water curtain size (mm): 600mm × 400mm (L × W) Standard air duct length: 2m
Introduction: When the spray gun is spraying on the workpiece, the paint sprayed by the spray gun cannot be completely absorbed by the workpiece, resulting in a large amount of harmful paint mist to the human body. In order to prevent indoor and outdoor air from being polluted by paint mist and maintain the health of spray painting workers, our company has developed a desktop water curtain spray painting cabinet for small-scale spraying in the laboratory. This paint cabinet adopts the latest design scheme, utilizing the principle of negative air pressure. During operation, the strong air flow (suction) formed by negative pressure in the air flow channel at the bottom of the water curtain creates vortices in the water here to flush the inhaled paint mist. The air is discharged outside by the fan, leaving oil residue in the water. This paint cabinet can directly apply the remaining paint powder during painting to the pool or water curtain surface, with a treatment effect of over 90%. The odor and excess paint powder generated during painting are filtered through a water curtain and discharged outside the painting room through an exhaust fan, thereby purifying the painting working environment and protecting personal health, while also enhancing the smoothness of the painted workpiece surface. In addition, the paint cabinet is made of all stainless steel box and equipped with a high-pressure centrifugal fan, which has the characteristics of small footprint, simple operation, safe use, and convenient cleaning. It is a new type of environmental protection equipment that is worth promoting vigorously.
