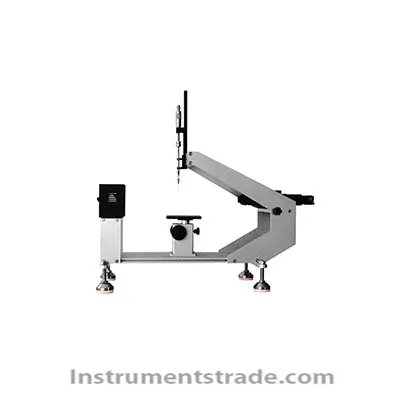

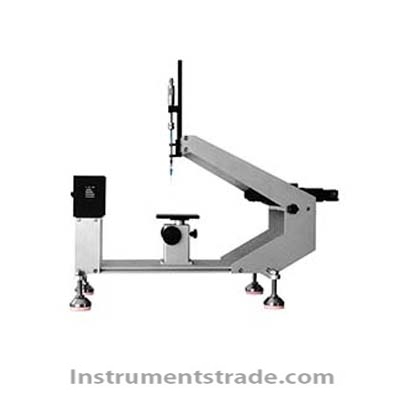

ALPHA Optical Contact Angle Measuring Instrument

Product ID:WBjzj035

Price: Please inquire PDF Format
Supply Ability:50SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberALPHA
    Brand NameGUANGZHOUBEITUO
    Payment TermsT/T, paypal
    ALPHA Optical Contact Angle Measuring Instrument
    Introduction
    The ALPHA optical contact angle measuring instrument is equipped with an advanced high-resolution high-speed industrial camera with LED cold light source to obtain high-definition images and calculate and fit with the newly optimized software to obtain accurate test data. The instrumentation combines ergonomics with humanized automated sample adjustment, sample stage adjustment, and optical system adjustment to make testing accurate, fast, and efficient.
    Features
    1.Convenient hardware and software operation, fast and proficient
    2.High speed and high resolution industrial camera
    3.Manual or software control precision electric injection unit
    4.Multiple calculation and fitting methods, automatic baseline recognition
    5.Intelligent image recognition, anti-interference
    6.Automatic video playback function to accurately select data collection points
    7.Multiple format data export function, one-click export experiment report
    8.Multiple measurement functions and modules are available
    9.Production line quality control, laboratory research and development perfect match
    Technical Parameters
    Contact angle measurement range: 0-180°
    Contact angle measurement accuracy: ±0.1°
    Optical system: 0.7-4.5x, adjustable focal length
    Camera angle: ±4° adjustable
    Titration accuracy: 0.01μl
    Contact angle measurement method: dynamic and static contact angle, rolling angle
    Contact angle analysis method: 6 common fitting methods
    Sample table size: 110mm × 110mm
    Maximum sample size: 300 x oo x 160 mm (W x D x H)









  • Introduction
    The ALPHA optical contact angle measuring instrument is equipped with an advanced high-resolution high-speed industrial camera with LED cold light source to obtain high-definition images and calculate and fit with the newly optimized software to obtain accurate test data. The instrumentation combines ergonomics with humanized automated sample adjustment, sample stage adjustment, and optical system adjustment to make testing accurate, fast, and efficient.
