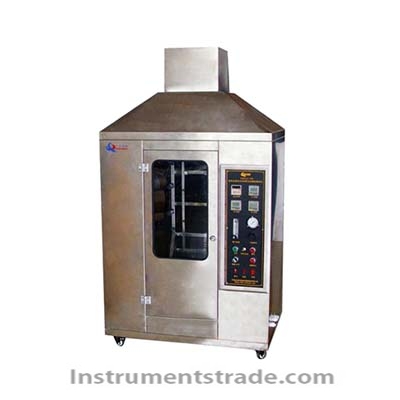

ZY6014I-VSB Textile Flame Spread Tester

Product Introduction
The ZY6014I-VSB Textile Flame Spread Tester is designed to evaluate the flame propagation performance of textiles and industrial textile products, including single-component and multi-component materials, coated fabrics, quilted textiles, multilayer fabrics, and composite structures.
The tester applies a controlled flame to the surface or bottom edge of a vertically mounted specimen for 10 seconds. It measures the time required for the flame to reach three marked positions, providing essential data for assessing textile flammability and flame spread characteristics. The instrument features automatic high-voltage ignition, adjustable burner angles, and independent timing for accurate and repeatable testing.

Performance Features
• Wide Material Compatibility: Suitable for single-layer, coated, quilted, multilayer, and composite textile materials.
• Three-Point Flame Timing: Independently records flame propagation times at three marked positions.
• Automatic Timing: Each timer stops automatically when the corresponding marker thread burns through.
• Adjustable Burner Angle: Supports 0°, 30°, and 90° angles relative to the specimen surface.
• Automatic Ignition: Uses a high-voltage electronic ignition system for convenient operation.
• Automatic Burner Movement: The igniter moves automatically, with manual adjustment of the burner angle.
• Precision Timing: Offers 0.1-second timing accuracy and 0.01-second resolution.

Working Principle
The test specimen is mounted vertically in the specimen holder. A burner meeting the requirements of GB/T 5456-2009 Appendix A applies a flame to the specimen surface or bottom edge for 10 seconds.
As the flame spreads upward, it burns through marker threads positioned at three specified locations. The timing system records the flame propagation time at each position and automatically stops the corresponding timer when the marker thread breaks. The resulting T1, T2, and T3 measurements are used to evaluate the flame spread behavior of the tested textile.

Technical Parameters

Parameter	Specification
Model	ZY6014I-VSB
Product Type	Textile Flame Spread Tester
Applicable Materials	Single-component and multi-component textiles, coated fabrics, quilted materials, multilayer fabrics, and composite textile products
Specimen Dimensions	560 × 170 mm
Specimen Quantity	3 specimens in the warp direction and 3 in the weft direction
Applicable Standard	GB/T 5456-2009, Appendix A burner requirements
Burner Nozzle Diameter	0.19 mm
Ignition Duration	10 seconds
Flame Height	Horizontal distance: 25 ± 2 mm; vertical distance: 40 ± 2 mm, from the burner tip to the yellow flame tip
Burner Angle	0° / 30° / 90°
Ignition System	Automatic high-voltage electronic ignition
Ignition Timer Range	Up to 99.99 h/min/s, user-settable
Flame Spread Timers	T1, T2, and T3; up to 99.99 h/min/s, user-settable
Timer Resolution	0.01 s/min/h
Timing Accuracy	0.1 s
Burner Movement	Automatic movement with manual angle adjustment
Fuel Gas	Industrial propane, butane, or propane/butane mixture; supplied by the user
Accessories	Specimen template for punching and specimen preparation

Application Scenarios
The ZY6014I-VSB textile flame spread tester is suitable for:
• Textile Testing Laboratories: Evaluating fabric flame spread and flammability characteristics.
• Textile Manufacturers: Assessing the fire performance of finished fabrics and textile materials.
• Protective Clothing Production: Testing flame propagation characteristics of workwear and protective textile materials.
• Upholstery and Bedding Industries: Evaluating coated, quilted, and multilayer textile products.
• Industrial Textile Quality Control: Comparing flame spread performance between materials and production batches.
• Research and Certification Facilities: Conducting controlled textile combustion tests in accordance with applicable testing procedures.

Product Comparison

Feature	ZY6014I-VSB Textile Flame Spread Tester	Basic Manual Flame Tester
Flame Application	Controlled 10-second exposure	Depends on equipment configuration
Timing Method	Three independent timing channels	May require manual timing
Timer Stop	Automatic marker-thread detection	May require operator intervention
Burner Angle	0°, 30°, and 90°	Depends on model
Ignition	Automatic high-voltage electronic ignition	Depends on model
Specimen Orientation	Vertical	Depends on test method
Test Applications	Single-layer and complex textile structures	Depends on fixture and configuration

The ZY6014I-VSB offers integrated ignition and three-point timing, helping reduce operator intervention and improve the consistency of flame spread measurements.

Frequently Asked Questions (FAQ)
Q1: What is the ZY6014I-VSB Textile Flame Spread Tester used for?
It evaluates flame propagation in textiles and industrial textile products, including coated, quilted, multilayer, and composite materials.
Q2: Which testing standard does the instrument reference?
Its burner is specified to meet the requirements of GB/T 5456-2009 Appendix A. The complete test procedure should be configured according to the applicable standard and specimen requirements.
Q3: How long is the specimen exposed to the flame?
The specified ignition duration is 10 seconds.
Q4: How is flame spread time measured?
The instrument records the time required for the flame to reach three marked positions. Each timer stops automatically when its corresponding marker thread burns through.
Q5: What are the T1, T2, and T3 timers?
They are the three independent timing channels used to record flame propagation at the respective marked positions.
Q6: Can the burner angle be adjusted?
Yes. The burner axis can be set to 0°, 30°, or 90° relative to the specimen surface.
Q7: What specimen dimensions are required?
The specified specimen size is 560 × 170 mm, with three specimens tested in the warp direction and three in the weft direction.
Q8: What fuel gas does the tester require?
It uses industrial propane, butane, or a propane/butane mixture. The gas supply is provided by the user.
Q9: Does the instrument ignite the flame automatically?
Yes. It uses automatic high-voltage electronic ignition and automatic burner movement, while the burner angle is adjusted manually.
