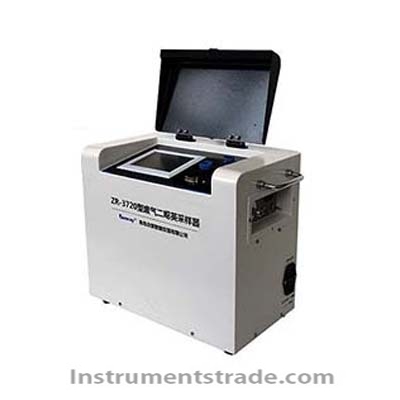

ZR-3720 Waste Gas Dioxin Sampler

Product ID：HQCYeey001

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberZR-3720

Brand NameQDZHONGRUI

Payment TermsTT，PAYPAL，Alibaba.com Pay

ZR-3720 Waste Gas Dioxin Sampler

Product Introduction
The ZR-3720 Waste Gas Dioxin Sampler is a specialized environmental monitoring instrument designed to collect solid-phase and gas-phase dioxins from industrial exhaust emissions. It is suitable for dioxin sampling in hazardous waste incineration facilities, medical waste incineration plants, cement kilns co-processing hazardous waste, and municipal solid waste incineration facilities.
Featuring a modular design, high-negative-pressure sampling pump, and automatic temperature control system, the ZR-3720 provides reliable sampling under demanding field conditions. Based on the Pitot tube parallel isokinetic sampling principle, it automatically tracks flue gas velocity to maintain accurate isokinetic sampling. Its intelligent control system integrates real-time parameter monitoring, automatic fault protection, data storage, and field reporting, making it suitable for environmental acceptance inspections, regulatory monitoring, and industrial emission testing.

Performance Features
1. Modular Structure: Compact, lightweight design enables convenient transportation, rapid assembly, and on-site operation.
2. High-Performance Sampling Pump: Uses an imported high-negative-pressure, high-flow sampling pump with an Omron variable-frequency controller for continuous operation under demanding conditions.
3. Intelligent Touchscreen: Features a 5.6-inch color touchscreen, Chinese-language menus, intuitive operation, and comprehensive prompts.
4. USB Data Export: Supports USB flash drive data export for convenient storage and management of large volumes of sampling records.
5. Inert Sampling Gas Path: Uses inert materials to minimize contamination. The replaceable titanium sampling tube and multiple titanium nozzle sizes accommodate different operating conditions.
6. Automatic Constant-Temperature Control: Automatically heats and maintains the sampling gas path at the required temperature, supporting reliable sample collection.
7. Reliable Sealing Structure: Optimized connection design helps maintain gas-path airtightness and reduce leakage.
8. Power Interruption Recovery: Automatically saves sampling data and remembers operating status during power interruptions, allowing sampling to resume after power is restored.
9. Built-In Thermal Printer: High-speed, low-noise thermal printing enables convenient on-site report generation.
10. Real-Time Clock: Records accurate sampling dates and times, supported by a backup battery.
11. Automatic Heating and Cooling: Integrated temperature control system provides fast response, high accuracy, and stable operation.
12. Automatic Isokinetic Sampling: Uses Pitot tube parallel isokinetic sampling technology to track flue gas velocity with high accuracy and rapid response.
13. Real-Time Environmental Monitoring: Measures atmospheric pressure and ambient temperature and automatically calculates standard-condition flow rate and sampling volume.
14. Automatic Fault Protection: Continuously monitors sampling conditions and activates protective measures when abnormalities occur.
15. Calibration Data Protection: Password-protected calibration parameters and one-key factory reset help maintain instrument configuration security.
16. Multiple Moisture Measurement Methods: Supports direct input, dry-wet bulb measurement, and condensation methods for determining flue gas moisture content.
17. Automatic Leak Detection: Features automatic gas-path leakage checking to help ensure sampling integrity.

Working Principle
The ZR-3720 Waste Gas Dioxin Sampler operates based on the Pitot tube parallel isokinetic sampling principle. During operation, the instrument measures flue gas velocity and automatically adjusts the sampling flow rate to maintain an isokinetic relationship between the sampling velocity and the flue gas velocity.
The sampling probe collects particulate-bound dioxins, while the sampling system captures gas-phase components through the designated collection arrangement. The sampling gas path uses inert materials and automatic temperature control to minimize contamination and maintain appropriate sampling conditions.
Throughout the process, the instrument continuously monitors sampling parameters, including atmospheric pressure, ambient temperature, and gas flow. It automatically calculates standard-condition flow rates and sampling volumes, records operational data, and provides automatic protection against abnormal conditions.

Technical Parameters

Parameter	Specification
Model	ZR-3720
Product Type	Waste Gas Dioxin Sampler
Main Application	Solid-phase and gas-phase dioxin sampling
Sampling Principle	Pitot tube parallel isokinetic sampling
Sampling Pump	Imported high-negative-pressure, high-flow pump
Pump Controller	Omron variable-frequency controller
Display	5.6-inch color touchscreen
Operation Interface	Chinese menu and touchscreen control
Sampling Probe	Replaceable titanium sampling tube
Sampling Nozzles	Multiple titanium nozzle sizes
Gas Path	Inert materials
Temperature Control	Automatic heating and cooling
Data Storage	Automatic data saving and USB export
Data Printing	Built-in high-speed thermal printer
Clock	Real-time clock with backup battery
Moisture Measurement	Direct input, dry-wet bulb method, condensation method
Leak Detection	Automatic gas-path leak detection
Safety Functions	Automatic fault monitoring and protection
Calibration Protection	Password protection and factory reset

Application Scenarios
The ZR-3720 is suitable for environmental monitoring and regulatory inspection involving dioxin emissions from various industrial combustion and waste treatment processes.
• Hazardous Waste Incineration: Dioxin emission sampling during environmental acceptance inspections and routine regulatory monitoring.
• Medical Waste Incineration: Collection of solid-phase and gas-phase dioxin samples from medical waste treatment facilities.
• Cement Kiln Co-processing: Dioxin sampling in cement production facilities that co-process hazardous waste.
• Municipal Solid Waste Incineration: Monitoring dioxin emissions from domestic waste incineration plants.
• Environmental Acceptance Testing: Supports completion and environmental protection acceptance inspections for construction projects.
• Regulatory Environmental Monitoring: Suitable for supervisory inspections and routine industrial emission sampling.

ZR-3720 vs. Conventional Waste Gas Sampling Equipment

Comparison	ZR-3720 Dioxin Sampler	Conventional Sampling Equipment
Sampling Application	Solid-phase and gas-phase dioxins	General exhaust gas sampling
Sampling Principle	Automatic isokinetic sampling	Model-dependent
Flow Control	Automatic flue gas velocity tracking	Configuration-dependent
Sampling Pump	Imported high-negative-pressure, high-flow pump	Pump specifications vary
Sampling Gas Path	Inert materials	Material-dependent
Temperature Control	Automatic heating and cooling	Model-dependent
Data Storage	Automatic saving and USB export	Model-dependent
Power Recovery	Sampling data memory and recovery	Model-dependent
Leak Detection	Automatic	Model-dependent
Field Reporting	Built-in thermal printer	Optional or model-dependent

Frequently Asked Questions (FAQ)
1. What is the ZR-3720 Waste Gas Dioxin Sampler used for?
It is designed to collect solid-phase and gas-phase dioxin samples from industrial pollution sources, including waste incineration plants and cement kilns.
2. What sampling principle does the ZR-3720 use?
It uses Pitot tube parallel isokinetic sampling technology to automatically track flue gas velocity and adjust the sampling flow rate.
3. Can the instrument collect both solid-phase and gas-phase dioxins?
Yes. It is designed for sampling both particulate-bound (solid-phase) and gas-phase dioxins from exhaust emissions.
4. What type of sampling probe does the instrument use?
It uses a replaceable titanium sampling tube and supports multiple titanium sampling nozzle sizes to accommodate different operating conditions.
5. Does the ZR-3720 have automatic temperature control?
Yes. It features an automatic heating and cooling temperature control system with fast response, high accuracy, and stable operation.
6. How is sampling data stored and exported?
The instrument automatically saves sampling data and supports USB flash drive export for convenient data storage and transfer.
7. Can sampling continue after a power interruption?
The instrument features power interruption memory and automatic data saving. After power is restored, sampling can resume based on the retained operating status.
8. What moisture measurement methods are supported?
Three methods are available: direct input, dry-wet bulb measurement, and condensation measurement.
9. Is automatic gas-path leak detection available?
Yes. The ZR-3720 includes an automatic leak detection function to check gas-path airtightness before or during the sampling workflow.
